Bluetti AC300 3000W Inverter Module Generator with 1 x B300 Expansion Battery 3072Wh
AC300-1xB300
Q & A | SKU: AC300-B300 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

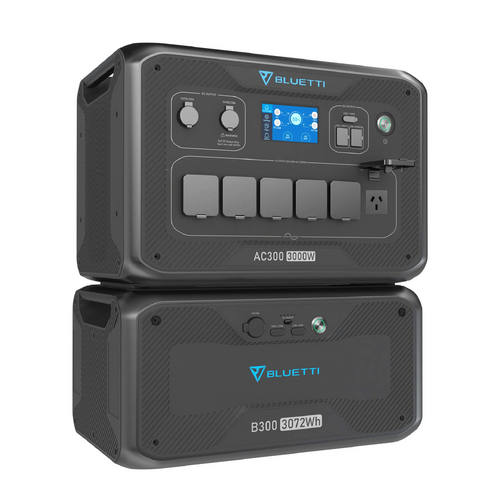

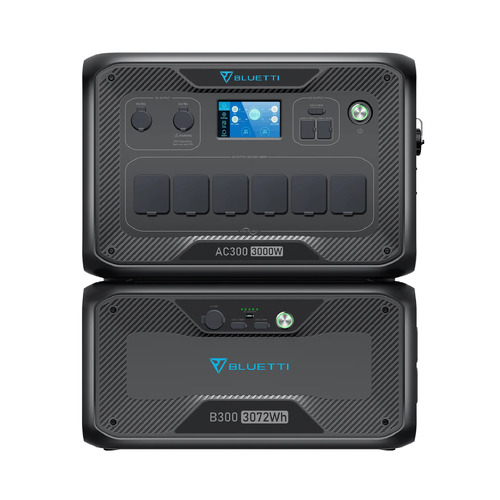

Bluetti AC300 3000W Inverter Module Generator with B300 Expansion Battery 3072Wh
Pack Includes:
- Bluetti AC300 3000W Inverter Module Generator + 1 x Bluetti B300 Expansion Battery 3072Wh
- Bluetti AC300 3000W Inverter Module Generator + 2 x Bluetti B300 Expansion Battery 3072Wh
- Bluetti AC300 3000W Inverter Module Generator + 3 x Bluetti B300 Expansion Battery 3072Wh
- Bluetti AC300 3000W Inverter Module Generator + 4 x Bluetti B300 Expansion Battery 3072Wh

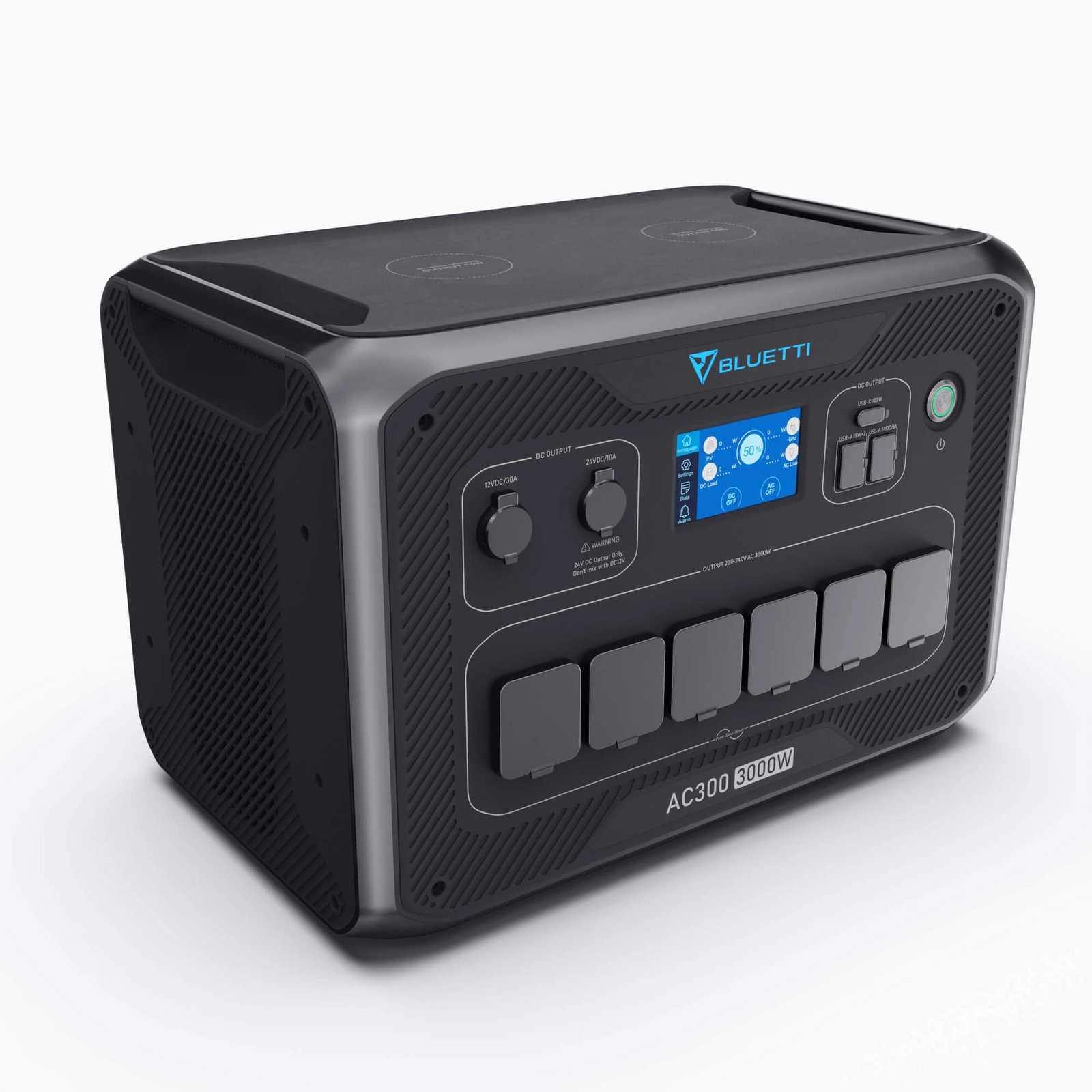

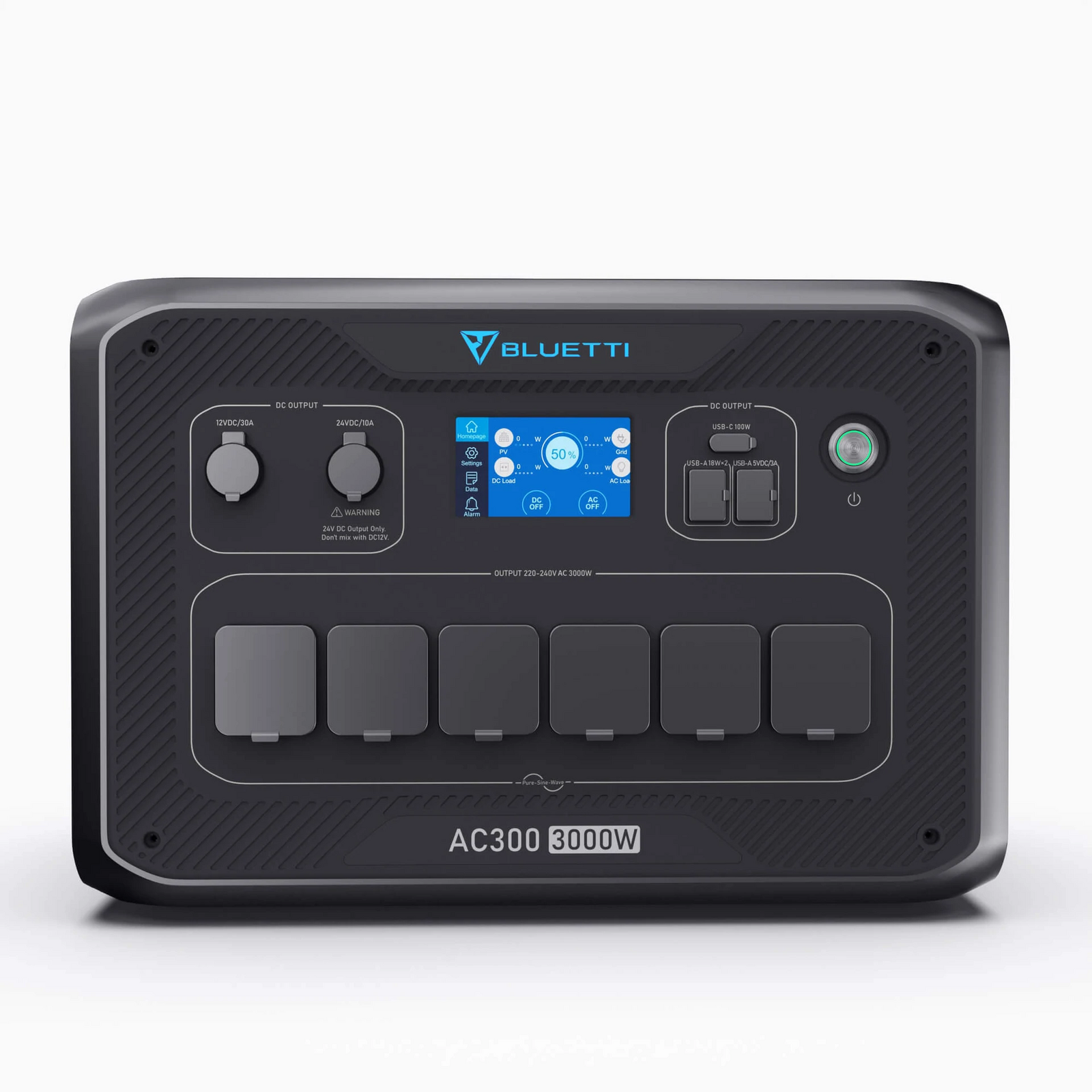

Bluetti AC300 3000W Inverter Module Generator
- 3,000W AC Pure Sine Wave Inverter (6,000W Surge).
- 3,072Wh Capacity (Expandable w/ up to 4 × B300 for 12,288Wh).
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual AC/AC+Solar).
- 2400W Max. Solar Input.
- 5400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously).
- Smart App Control & Monitor.
- 24/7 UPS Home Backup.
Features:

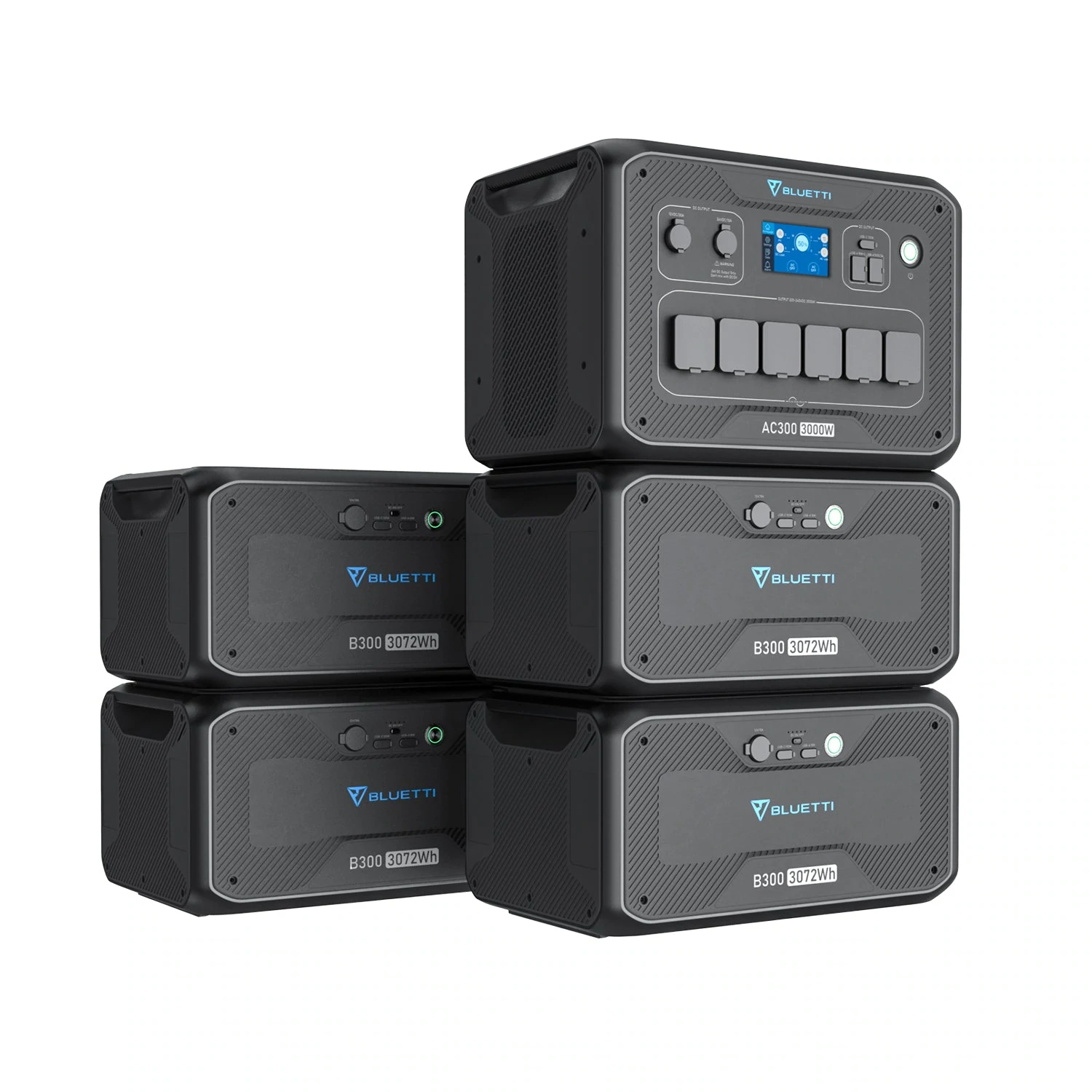

- Expand Your Power At Will. BLUETTI AC300 is 100% modular, supporting up to 4×B300 (3,072Wh per pack) battery modules for a groundbreaking capacity of 12,288Wh! Power your basic family needs for DAYS during emergencies or power outages!
- Expandable Power Supply. As BLUETTI's first 100% modular station, the AC300 can accept external battery packs and boost its capacity to a Max. 12,288Wh. From emergency backup to off-grid power source, this generator for home backup is sure to handle all your electricity needs.
- 5400W Fast Charging. Plug in the adapter and solar panels, then you can top up BLUETTI AC300 with astonishing 5400W input rate. Charge this powerhouse before an impromptu trip, and you're good to go. 5400W = 3000W AC + 2400W Solar( At least 2×B300 are REQUIRED)
- 5 Ways to Charge. Flexible to charge your AC300 via wall outlet, solar panels, car, generator and lead-acid battery, etc. Stay connected anytime, anywhere.
- Multiple Outlets for Every Need. The 12V/30A DC port are perfect for RVers. Meanwhile, the wireless chargers enable you to charge compatible smart phones, earphones and so on.
- Never Run Out of Power. Suitable for various occasions
Specifications:
OUTPUT:
- AC Outlets: 6x 220V-240V 3,000W In Total
- Inverter Type: Pure Sine Wave
- Surge Power: 6000W
- USB-C Port: 1 x 100W Max.
- USB-A Port:
- 2 x 5V/3A USB-A
- 2 x 18W USB-A
- 12V* DC Outlets:
- 1 x 12V/30A (RV Outlet)
- 1 x 24V/10A (Car Outlet)
- *All Regulated.

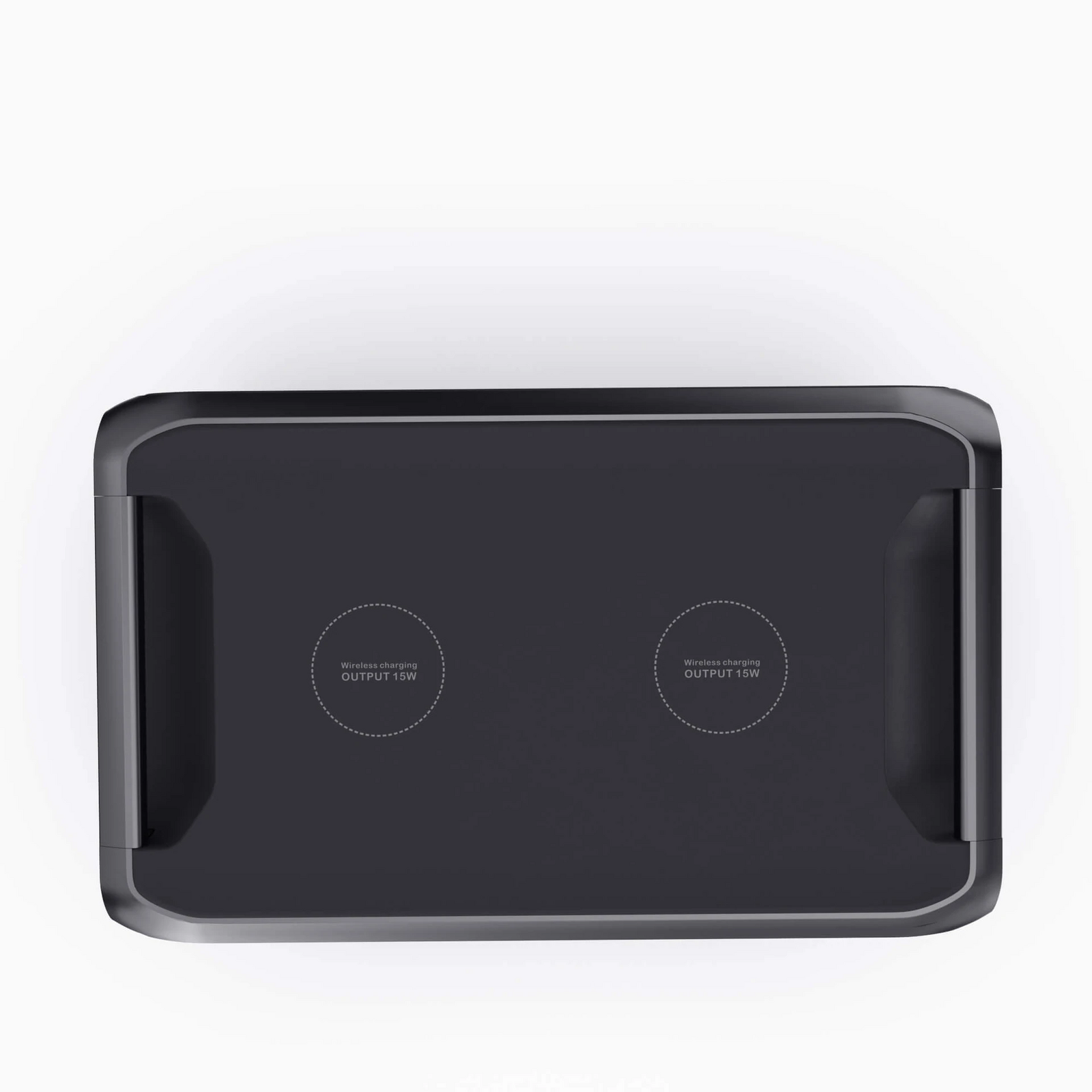

- Wireless Charging Pad: 2 x 15W Max. (For Each)
INPUT:
- AC Charging Cable Input: 3,000W
- Max. Solar Input: 2,400W Max., VOC 12-150VDC, 12A
- Car Input: 12/24V from Cigarette Lighter Port
- Max Input: 5,400W, with AC and Solar Input Simultaneously
GENERAL
- App Control: Yes, Wifi&Bluetooth
- Scalability: Expandable W/Up to 4 x B300
- Simultaneous Recharge & Discharge: Yes
- Weight: 21.6kg
- Dimensions (LxWxD): 520mm x 320mm x 358mm
- Operating Usage Temperature: -4-104℉ (-20-40℃)
- Storage Temperature: -4-104℉ (-20-40℃)
- Certification: UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS
- Warranty: 2 Years

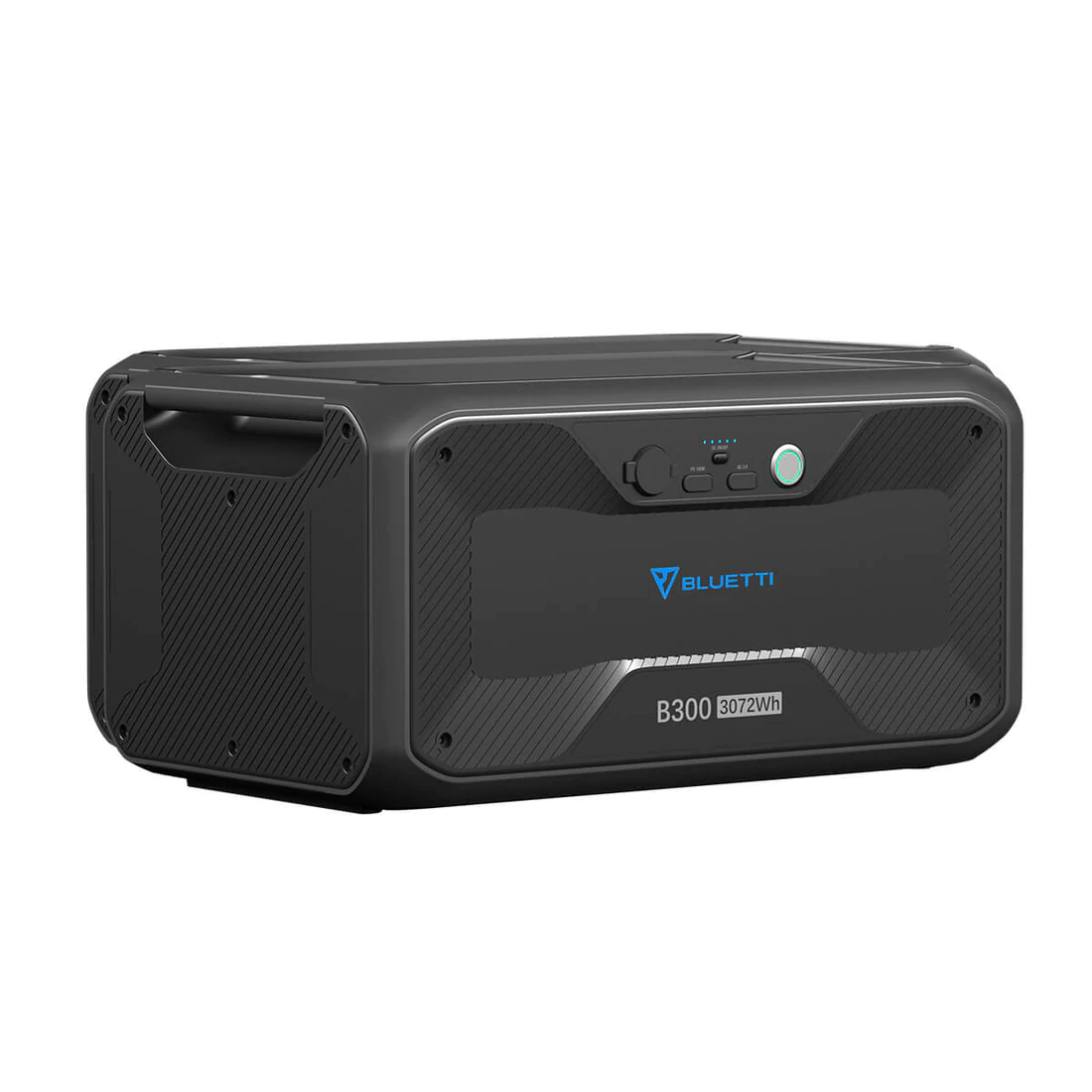

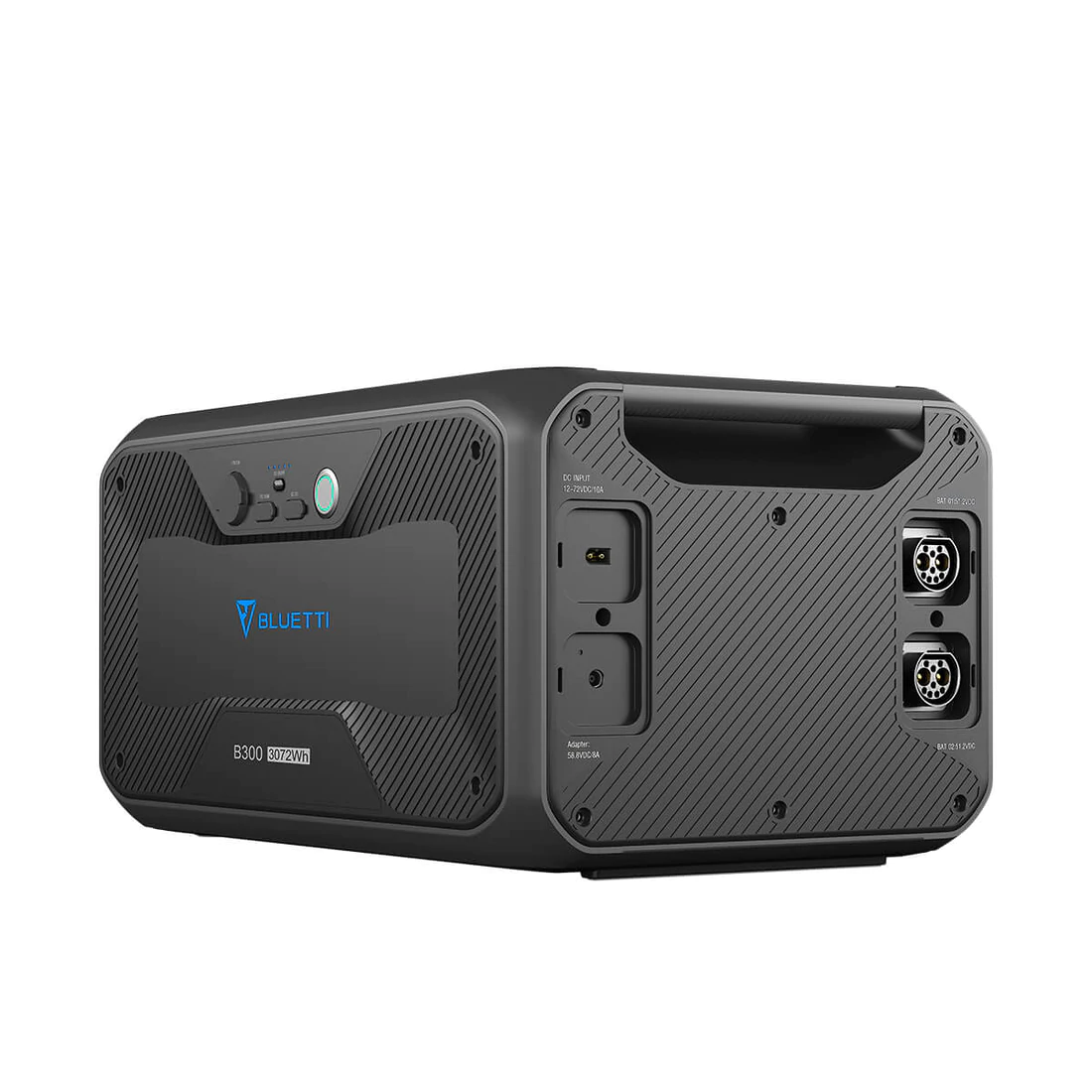

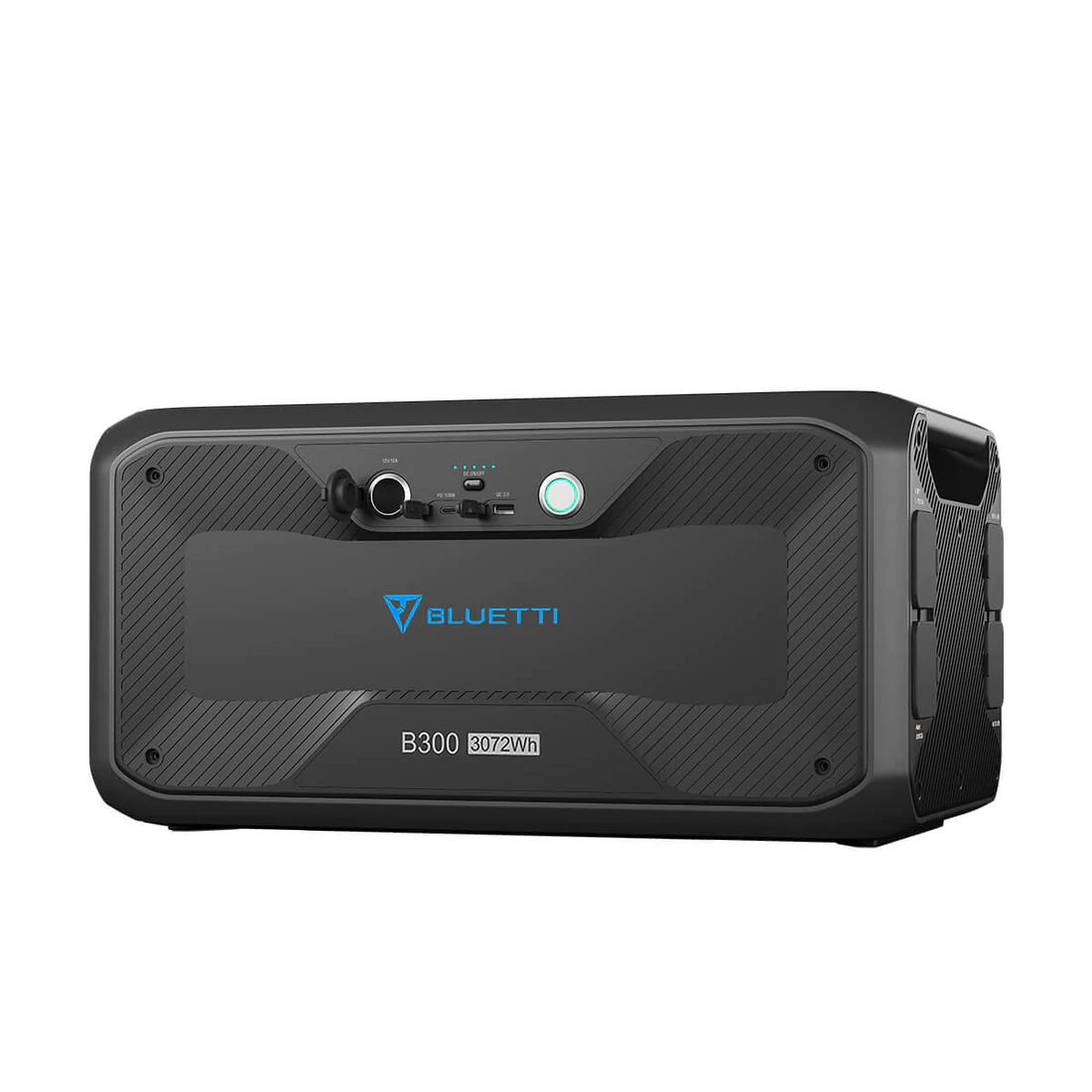

Bluetti B300 Expansion Battery 3072Wh
- Features with a 100W USB-C, a 12V/10A car output and a USB-A ports, you can use the B300 as a portable power station.
- The smart MPPT inside of the B300 enables it to recharge quickly through solar power at a 200W maximum loading scale.
- You can also recharge it by wall socket (Sold separately), car charging or lead-acid battery.
- Car charging and lead-acid battery charging need to be realized through D050S
Features:
- Flexible Recharging. You can recharge BLUETTI B300 quickly with 200W Max. solar input thanks to the built-in MPPT. Besides, it also supports AC (Sold separately), car, and lead-acid battery charging. The car and lead-acid battery charging need a D050S.
- Versatile Power Source. You can power your smartphones, laptops, fans, lights, refrigerators, microwave ovens, and so on with specific output port - the 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports.
- Expandable Battery Pack. B300 has 3,072Wh capacity and over 3,500 life cycles with the LifePO4 battery cells, offering up to 80% of original capacity. Moreover, it will double, triple, even quadruple the total capacity with BLUETTI AC200MAX, AC200P, or AC300 series.
- Home Backup and Trip Power Bank. Whether in a family gathering or camping trip, B300 will serve as your backup power supply or power bank. It powers your home and camping necessities well, and all you need to do is enjoy the good times.
- Never Run Out of Power. Suitable for various occasions
Specifications
BATTERY INFO:
- Capacity: 3072Wh(51.2V, 60Ah)
- Type: LiFePO4(Lithium Iron Phosphate)
- Life Cycle: 3500+ Cycles to 80% Original Capacity
- Shelf-Life: Recharge to 80% Every 3-6 Months
- Management System: MPPT Controller, BMS, etc.
OUTPUT:
- USB-C Port: 1 x 100W Max.
- USB-A Port: 1 x 18W USB-A
- 12V DC Outlet*:1 x 12V/10A (Car Outlet) *All Regulated.
INPUT:
- AC Input: 500W Max
- Solar Input: 200W Max., VOC 12-60VDC, 10A
- Car Input: 12/24V from Cigarette Lighter Port
- Max Input: 700W, With AC Adatper + Solar Input Simultaneously
RECHARGE TIME:
- AC:≈ 6.5~7 Hours at 500W
- Solar: ≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature)
- 12V/24V Car Outlet (100W/200W): ≈ 30 or 15 Hours
- AC + Solar: ≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature)
- Solar + Solar: ≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)
- Dual AC:≈ 5 Hours at 700W (Extra adapter REQUIRED)
GENERAL:
- Pass-through Charge: Yes
- Weight: 36.1Kg
- Dimensions (LxWxD): 520mm x 320mm x 266mm
- Operating Usage Temperature: -4-104℉ (-20-40℃)
- Storage Temperature: -4-104℉ (-20-40℃)
- Certification: UL Standard, CEC, DOE, FCC, CA Prop 65
- Warranty: 2 Years
Specifications
SKU AC300-B300
Brand Bluetti
Product Category Power Packs
Amp Hours (Ah) @ V 60
Dimensions 520 x 320 x 358mm
Weight (kg) 57.7
Watt hours (Wh) 6144
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 2 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
Delivery
- We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
- Small Items are sent with Australia Post via regular post.
- Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
- Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
- Items are fully insured during the freight process.
- Unfortunately we cannot deliver to PO Boxes.
- For further details on our Delivery Process you can visit our Delivery Page HERE.
Reviews
Be The First To Review This Product!
Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.
Q & A
-
How many B300 expansion batteries can I connect with AC300?
A single AC300 can take up to 4 B300 batteries for a capacity of 12,288Wh. Friendly Note: Only B300 can be connected to AC300. B230 can not be connected to AC300.
-
Does AC300 work with third-party expansion battery?
No. AC300 ONLY accepts BLUETTI B300 expansion battery.
-
Can I use AC300 alone?
No. There's no battery inside AC300 and it must work with B300.
-
Does AC300 support App Control?
Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely, like switching the working mode and upgrading the firmware.
-
Can I use it as an uninterruptible power supply (UPS)?
Yes. It supports four UPS modes:
1. Standard UPS.
2. Time Control UPS (Pay less for higher electricity consumption).
3. PV Priority UPS (Recommended for regions with sufficient solar energy).
4. Customized UPS.
-
How do I connect this to my home main panel?
BLUETTI recommends a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI AC300 directly.
-
What is the UPS switching time?
There are two types of working conditions of UPS for AC300 system.
1) No delay for online UPS;
2) 20ms from standby UPS.
-
Can I use third-party solar panels to charge the AC300 system?
Yes, if the solar panels' specs fall in
1) Total Voltage: 12-150V.
2) Total Power: 2,400W Max. (From the two PV input ports)
3) Include MC4 connectors.
-
Can I connect two AC300 systems in series?
No
-
Is the AC300 power station waterproof?
No. Also, please do NOT store it in a humid environment for a long time.
-
Can it charge and discharge at the same time?
YES
-
How do I know whether my appliance can work well with the AC300 and B300 combo?
Calculate the total wattage of your devices. AC300 should work if the load doesn't exceed its rated 3,000W.
-
How long can it run my device?
Running time = Battery capacity x DoD x η ÷ Device rated power
DoD refers to Depth of Discharge and η is local inverter efficiency.
For AC300, both DoD and η are 90%. If you run a 1,000W microwave oven with AC300+B300 combo, the running time will be:
3,072Wh x 90% x 90% ÷ 1,000W ≈ 2.5hrs
Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.
-
What is the maximum input charging power of the BLUETTI AC300?
For AC300 with one B300: 3,000W Max. Via a 240V15A wall socket by a 15A AC charging cable (sold seperately).
For AC300 with more than one B300: 5,400W Max. Via 3,000W wall socket and 2,400W solar panels simultaneously.
-
Is the AC300 system hot-swappable?
Yes. You can easily swap battery packs for continuous power use, and the system can hold 4 batteries at once.
-
Is it possible to replace the built-in battery?
No. If the battery inside your power station is faulty or even dead, please contact BLUETTI Customer Service.
-
I'd like more tutorial videos on the AC300 system.
Sure, please follow BLUETTI Support on YouTube
