Accessories List:
Description

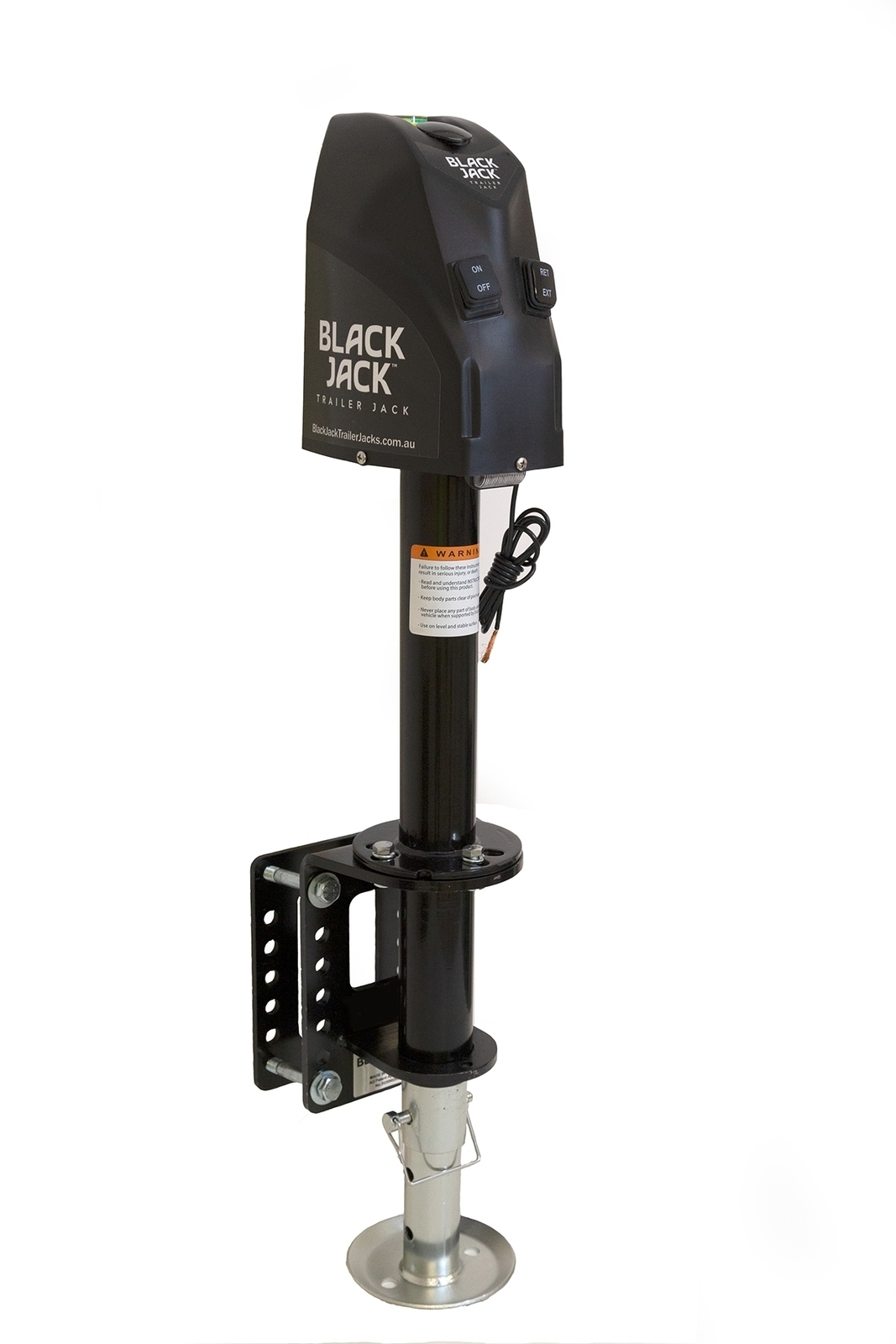

Black Jack Electric Trailer Jack Bundle with Jockey Block
The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. Easy DIY installation and insanely simple RAISE\LOWER switch operation.
Hugely popular in the USA, the Black Jack™ now comes complete with the all-weather cover, and the Black Jack Clamp™ allowing uses the ability to easily bolted to the Caravan or Trailer A-Frame. For easier and faster deployment or retraction the Black Jack™ includes the Black Jack™ Folding Foot providing no more bending down to adjust the foot extension height position. Also included is the Black Jack™ Foot Pad giving improved stability on soft or unstable surfaces.
Kit Includes:
- 1x Black Jack Electric Trailer Jack
- 1x Black Jack Clamp Patented, BJTJ-BKT
- 1x Black Jack Folding Foot, BJTJ-FF
- 1x Black Jack Foot Pad, BJTJ-FP
- 1x Black Jack All Weather Cover, BJTJ-Cover
- 1x Black Jack Jockey Block, BJTJ-JB
Features:
- 1600 kg lifting capacity, more than enough muscle
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ – 1001)Free all weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg
- Black Jack cable length is 1.3m
Note: This product does not come with the wiring harness. The Wiring harness can be purchased individually here Black Jack DIY Harness Kit SKU: BJTJ-HAR or as a bundle with the Electric Trailer Jack here Black Jack Electric Trailer Jack Bundle with Harness kit & Jockey Block SKU: BJTJ-1001-JB.
Also Included is the Black Jack™ CLAMP Featuring:
- 6 different chassis bolt hole positions so it fits any Caravan or trailer A-Frame in Australia (6 inch, 5 inch, 4 inch or 3 inch)
- Multiple top hole positions so the Black Jack can be installed facing the front, the side or the rear of the Caravan or trailer. Your choice!
- Panel recess so you can install over the top of existing wire fittings maximizing the options of where to install on the A-Frame.
- Safety chain insert hole so you can hang safety chains on the Black Jack Clamp.
- Upper support and a lower support brackets designed to eliminate any lateral movement that may be caused by uneven surfaces.
- Easy bolt installation. No additional modifications, welding or tools are required.
- Tough powder coated finish
- Australian Patent Pending (No. 2020902039)
- Registered Australian Design
- Made in Australia supporting Australian jobs
Specifications:
- Dimensions: H 781 x W 216 x D 140mm
- Weight: 9kg
- Engine / Motor Type: Sealed brushless motor
Specifications
SKU BJTJ-1000-JB
Brand Black Jack
Product Category Trailer and Towing Equipment
Maximum Load Capacity (kg) 1600
Overall Dimensions H 781 x W 216 x D 140mm
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 3 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
Delivery
- We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
- Small Items are sent with Australia Post via regular post.
- Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
- Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
- Items are fully insured during the freight process.
- Unfortunately we cannot deliver to PO Boxes.
- For further details on our Delivery Process you can visit our Delivery Page HERE.
Reviews
Black Jack electric rv jack
By: Cameron on1 January 2024
Honestly this product is of good quality materials and built to a high standard . And to mention this jack actually works as intended . I'm glad I made the move from a jockey wheel to the black jack awesome product.
Q & A
-
Do I need power to run my Black Jack?
Yes, you require 12V power to run your Black Jack. This can be achieved via an Andersen plug to your caravan battery or your vehicle battery through the tow connection point.
-
What is the lifting capacity of a Black Jack?
The Black Jack has a 1600kg lifting capacity, more than enough for all caravans in todays market
-
Do I require the Harness Kit?
You will only need the harness kit if you don't already have 12V power at your connection point, ie Andersen plug on tow vehicle and/or caravan battery.
-
How long is the cable that comes attached to the Black Jack?
1.3m
-
How high will the Black Jack go up?
The Black Jack has a stroke of 560mm, if you require more you can utilise the RedFoot Big Block to increase your stroke length.
-
Do I have to take off the Black Jack when travelling?
No, provided you have securely attached the Jack using the supplied clamp and the leg and foot plate is fully retracted.
-
I need new tracks for my Camper Trolley but there are two types, what is the difference and which one should I get?
The bevelled tracks are for pre 2019 trolleys and any post 2019 trolleys require the square tracks.
