Description

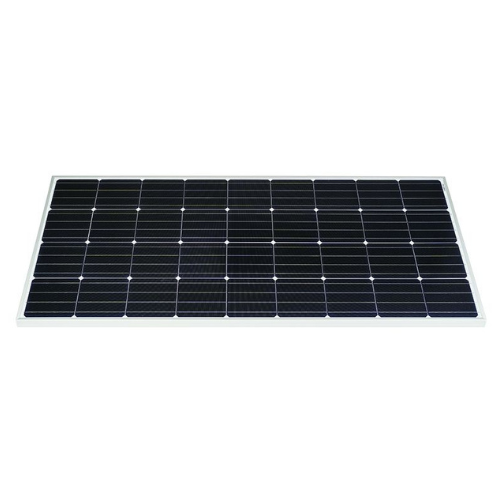

Camec 12V 170W Fixed Solar Panel
CAMEC 170W mono-crystalline solar panel use solar cells which are manufactured using the latest manufacturing techniques and highest grade of mono-crystalline.Each solar cell has a SIN surfaceanti-reflective coating which provides a uniform blue colour and helps to absorb more light under all weather conditions.Together with Black Surface Field (BSF) structure, the solar cell shows superior conversionefficiency.- Highly efficient Class a Solar cells
Features:
- Highly efficient Class A solar cells
- Ideal for caravanning, Rv's, marine and remote back up power
- Anodized aluminium alloy frame
- Low iron high transparency tempered glass cover
- Bypass diode to minimise power drop caused by shade
- Anti-reflective high transparency tempered glass
- Solar cell embedded in EVA
- Tedlar foil backing
Specifications:
- Size of solar cell: 156x156mm
- Max Power Ouput (pm): 170 Watt
- Output Tolerance: +5%
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Voltage (lsc): 10.09A
- Working current (lpm): 9.44A
- Working voltage (Vpm): 18V
- Type of output terminal: MC4 Compatible
- Testing Conditions: AM11.5, 1,000W/m2, 25C
- Dimensions (L x W x H): 1460 x 664 x 35mm
- Weight: 12.5kg
Specifications
SKU A-051856
Brand Camec
Product Category Portable Solar Panels
Watts (W) 170
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
Short Circuit Voltage 10.09A
Weight (kg) 12.5
Working Voltage 18V
Dimensions 664 x 1460 x 35 mm
Open Circuit Voltage 21.6V
