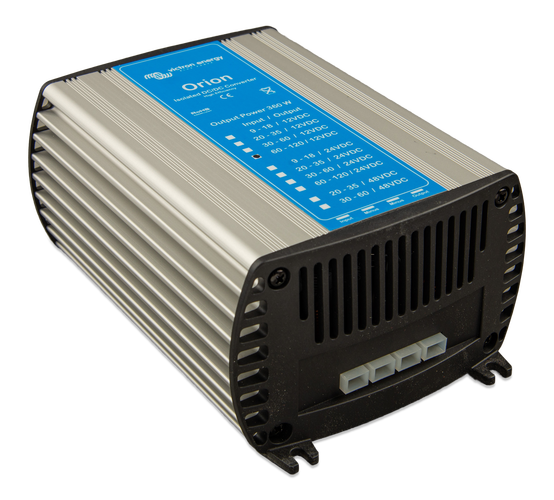

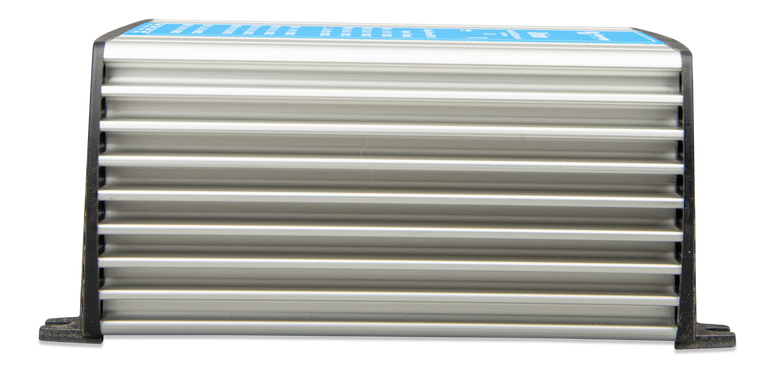

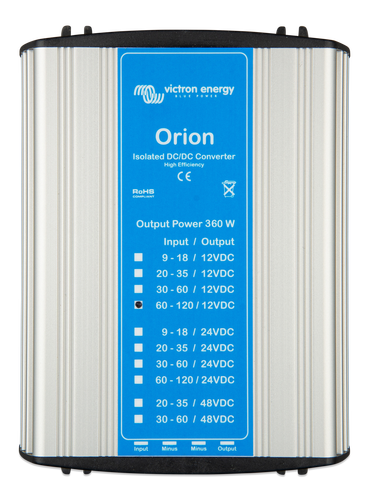

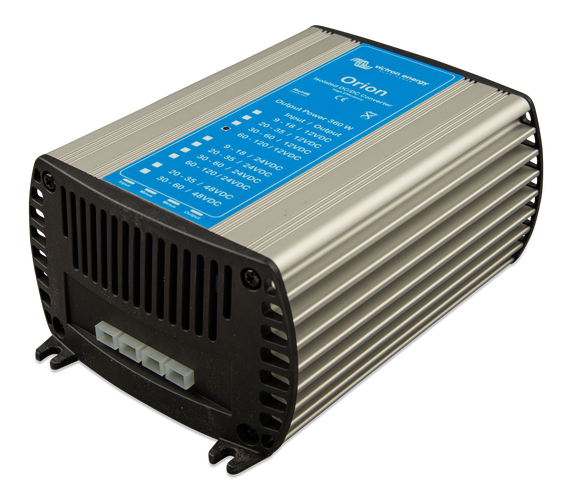

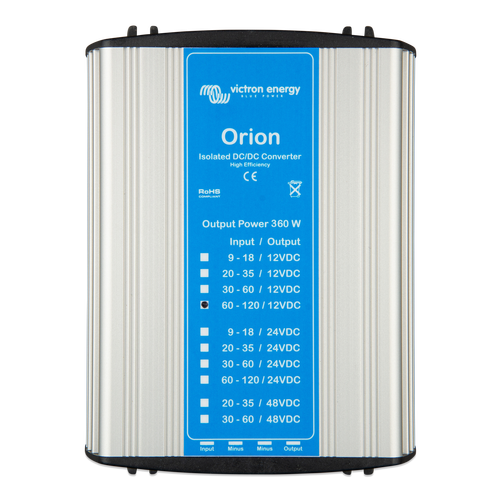

Victron Orion 110/12V 30A 360W DC to DC Converter with Galvanic Isolation
SKU: ORI110123610 Learn More»
Description
Victron Orion 110/12V 30A 360W DC to DC Converter with Galvanic Isolation
An ever-increasing amount of electric equipment is being used on vehicles and boats. Because most low-voltage equipment, such as navigation and radio equipment, mobile telephones or car hi-fi systems, is designed for 12 Volts, Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter prevents problems of that type. Next to converters from 24 V to 12 V, a wide range of other models is available.
Specifications:
- Power Rating: 360W
- Galvanic Isolation: Yes
- Temperature increase after 30 minutes at full load (°C): 30
- Fan assisted cooling (temp. controlled): Yes
- Weight: 1.4kg
- Dimensions hxwxd: 82mm x 132mm x 190mm
- Input voltage: 110V (60 – 140V)
- Output voltage: 12.5V or 24V
- Output voltage stability: 2%
- Output voltage tolerance: 3%
- Output noise: < 50mV rms
- Off load current: < 25mA
- Efficiency: 85%
- Isolation: > 400Vrms between input, output and case
- Operating temperature: - 20 to + 40°C (0 to 100°F). Derate linearly to 0A at 70°C (160°F)
- Humidity: Max 95% non-condensing
.png)
Specifications
SKU ORI110123610
Brand Victron
GTIN 8719076022688
Product Category Converters
