Thunder 100A Electronic Battery Isolator

SKU: TDR15100 Learn More»

Sold Out - See similar products HERE


Learn More»

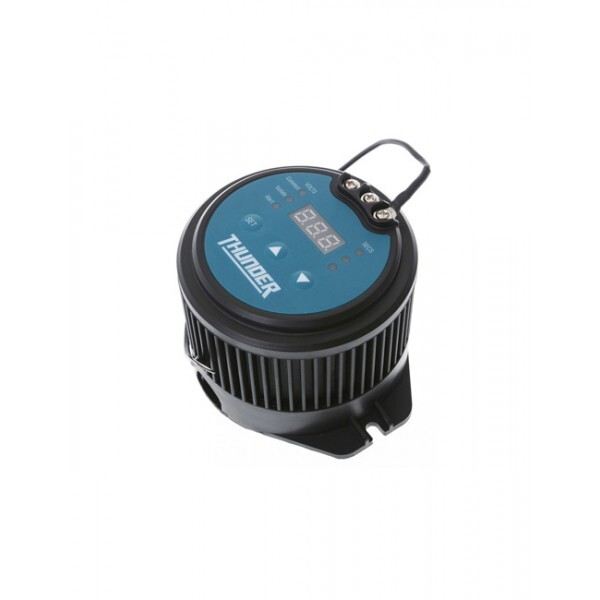

Thunder 100A Electronic Battery Isolator

The Thunder Battery Isolator is a user-programmable electronic isolator that will allow the auxiliary battery to be charged using the vehicle’s charging system. The batteries are connected and isolated depending on the levels set by the user. This means that once the start battery reaches a predetermined voltage (default is 13.7V), the Thunder Battery Isolator will connect the batteries and the auxiliary battery will start receiving a charge. The batteries will remain connected until the main battery voltage drops below the chosen level (default is 12.8V).


Standby Current 0.04 Amps
Dimensions (LxWxH) mm 110 x 90 x 72
Current Max. Continuous: 100 Amps | Max. Inrush: 400 Amps
Voltage 9.2 - 16.0 Volts



  • Fully programmable engage, disengage, alarm voltages and times
  • 100 Amp continuous rated
  • Remote monitoring option
  • Jump start function option
  • Will allow reverse charging from auxiliary battery


Dometic Harrier Brochures

Dometic Harrier Operation Manual


SKU TDR15100

Brand Thunder

GTIN 9315275894362

Product Category Batteries Other

Voltage: 9.2 - 16.0 V

Dimensions: 110 x 90 x 72 mm

NOTE: see full product specifications & further product info in the Description section on this page.

Warranty Period: 1 Year
