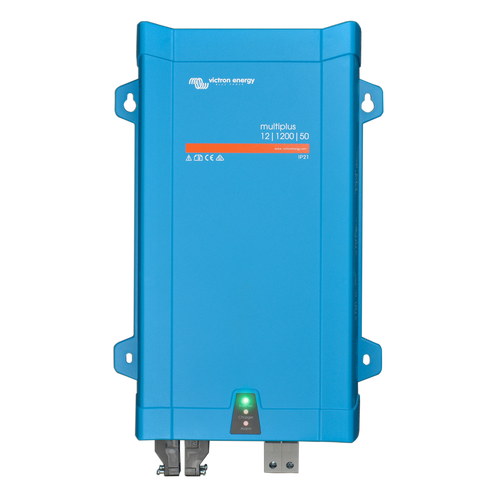

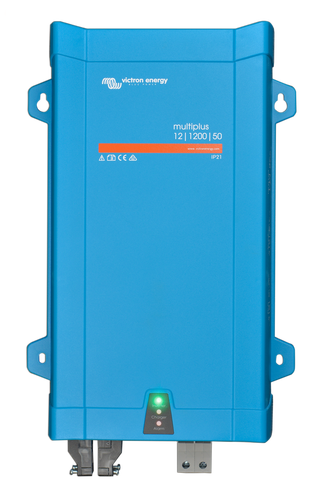

Victron MultiPlus Inverter Charger 12/1200/50-16
Free Shipping

Victron MultiPlus Inverter Charger 12/1200/50-16

INVERTER CHARGER

Reviews: (1)    | Q & A |    SKU: PMP122120000 Learn More»

$1,113
$1,351
In Stock1-2 Days Dispatch
EXTRA $30 OFF! Add to cart to get an instant discount
SALE ENDS

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories List:

$32

$142

$219

$177

Click '+' to show more accessories
Learn More»

Description

Victron MultiPlus Inverter Charger 12/1200/50-16

The Multi 500VA is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Specifications:

Output Current Rating (Amps)                                                 50.0 Amps
Wattage 1000W
Peak Power 2400W
Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%
Output Power 1000W (continuous output power at 25­­°C) | 900W (continuous output power at 40­­°C) | 600W (continuous output power at 65­­°C)
Input Voltage 9.5-17V
Operating Temperature Range -40 to +65°C
AC Input 187-265VAC | 45-65Hz
Inverter Output Continuous Watts 1000W (continuous output power at 25­­°C)
Charge voltage 'absorption' 14.4V
Charge Voltage Float - Wet (25 degrees)** 13.8V
Charge voltage 'storage' 13.2
Inverter Output Nominal Efficiency 93% (maximum)
No load power consumption 10W | 2W in search mode
Product Dimensions (mm) LxWxH 250 x 100 x 406
Net Weight (kg) 8.2 Kg



Features:

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

PowerControl

Dealing with limited generator, shore side or grid power (800VA model only) With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

High start-up power

Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode

When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay

By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on

Remote operation can be implemented by connecting a switch to the three pole connector.



Dometic Harrier Brochures

Dometic Harrier Operation Manual



Specifications

SKU PMP122120000

Brand Victron

GTIN 8719076039310

Product Category Power Inverter Chargers

voltage 12V

Wattage (W) 1000

Input Voltage 9.5-17V

Dimensions 250 x 100 x 406mm

Peak Power (W) 2400

Weight 8.2


NOTE: see full product specifications & further product info in the section on this page.

Warranty

Warranty Period: 5 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product

Delivery

  • We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
  • Small Items are sent with Australia Post via regular post.
  • Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
  • Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
  • Items are fully insured during the freight process.
  • Unfortunately we cannot deliver to PO Boxes.
  • For further details on our Delivery Process you can visit our Delivery Page HERE.

Reviews

Write a product review

Victron Multiplus Inverter Charger does it all

15 May 2021

I needed an inverter to charge tool batteries, run a laptop and use power tools on my boat. The Victron Multiplus will also keep my batteries topped up when we're on shore power and boost flagging dockside voltage. They're very well built and reliable - I've had Victron gear since 2010 and its never let me down. This inverter/charger is quiet, efficient and compact: highly recommended :-)

Q & A


  • What size generator should I use for charging a battery?

    The below generators are the minimum recommend sizes based on an AVR generator:

    • 800VA 2KVA
    • 1200VA 2.5KVA
    • 1600VA 3KVA
    • 3000VA 5KVA
    • 5000VA 8KVA

    If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.

  • Can these chargers take solar input?

    No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

  • How can I remotely monitor and control my devices?

    You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
