Planning to power appliances like fridges, lights, or even a winch from your 4WD? Whether you're heading off-grid for the weekend or setting up a serious touring rig, a reliable 4WD power system is essential. These systems allow you to run and recharge your gear without risking a flat starter battery. From simple battery isolators to advanced lithium canopy systems, this guide breaks down everything you need to know.
Components of a 4WD Power System
A 4WD power system typically consists of the following key components:
-
Starter Battery: Your vehicle’s main battery used for starting the engine.
-
Auxiliary Battery: A secondary battery used to power accessories.
-
Battery Management System: Devices like isolators, DC to DC chargers or solar regulators that manage charging.
-
Wiring & Fuses: High-quality cabling and fuse protection ensure system safety.
-
Solar Inputs (optional): Panels and regulators for off-grid power.
Depending on your setup, you might also include inverters, distribution panels, and Bluetooth monitoring.
Choosing the Right Power System for Your Needs
There’s no one-size-fits-all setup. Here are the most common 4WD power system options:
Option 1: Basic Battery Isolator or Voltage Sensitive Relay (VSR)
The simplest and most budget-friendly solution is to install a voltage sensitive relay (VSR) under the bonnet. It connects your starter and auxiliary batteries, automatically linking and disconnecting them based on voltage levels. Put simply, a Voltage Sensitive Relay is a smart switch that automatically connects or disconnects your second battery based on the voltage level of your main battery. It will prevent leaving you in the middle of nowhere with a flat starter battery.
Best For: Traditional alternators and lead acid battery setups.
Recommended Product: Enerdrive Dual Battery Kit – Automatically manages battery separation and charging. Its dual-sensing VSR can even detect if your auxiliary battery is being charged by an external source (e.g. solar) and engage to charge both batteries.
Option 2: DC to DC Battery Charger
The most popular and flexible choice for modern 4WDs is a DC to DC battery charger, ideal for vehicles with smart alternators and lithium batteries. These chargers often include solar MPPT regulators, making them a dual-input solution.
Best For: Vehicles with smart alternators or lithium setups.

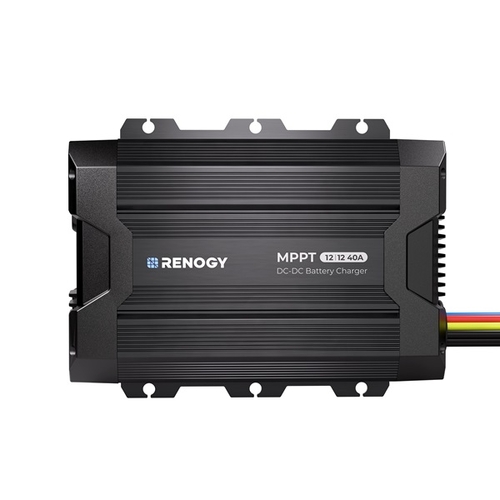

Recommended Product: Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT or the Renogy 40A DC-DC Battery Charger with MPPT. Features a dual charging system, so you can top up fast when on the road, yielding energy from both your car and solar at the same time.
Option 3: Pre-Wired 4WD Canopy Systems
For serious setups, Enerdrive’s 4WD canopy power systems offer an all-in-one solution. Pre-wired for easy installation, these units can power everything from fridges to full touring setups.
These models mount neatly in your canopy and can be paired with the Enerdrive 16mm cable kit to connect with your vehicle's starter battery. These are the one stop shops for powering offgrid. Choose from a simple 12v system to a fully integrated 240v system to run coffee machines and induction cooktops.
Option 4: Under-Bonnet Lithium Systems
Invicta’s Hybrid Lithium Starter Batteries can be mounted under the bonnet — a game-changer for saving interior space. These batteries double as auxiliary power and emergency cranking backups.
Key Features:
-
Reserve 20% capacity for emergency cranking
-
Bluetooth monitoring via app
-
The MAX model can even run a winch!
Pair With: BMPRO DC DC ProBoost – a powerful charger that supports DCDC and solar input and can also be mounted under-bonnet.
Option 5: Slimline Lithium Batteries
If space is limited, Slimline Lithium Batteries are the perfect choice. Designed to fit behind seats or in tight compartments, they’re compact without compromising on power.
Top Picks:
-
Enerdrive B-TEC Slimline Lithium Batteries (100Ah to 400Ah)
Lightweight, compact and encased in metal for extra durability.
-
Invicta Super Slim Lithium Batteries (100Ah and 200Ah)
Only 65mm wide – ideal for installs behind rear seats with Bluetooth monitoring built in. -
Renogy 12V 300Ah Core Mini Lithium Battery, while this battery isn’t slim it is only 384x 194 x 253mm. It packs a punch with 300Ah of lithium at half the size of a standard lithium battery. When space is critical this battery is a game changer.
.png)
Installation Requirements
When setting up your 4WD power system, consider the following:
-
DIY vs Professional Install: Some systems, like DC to DC chargers, can be installed DIY with the right tools and know-how. Others, especially involving lithium or complex integrations, may require a qualified auto-electrician. If utilising an inverter, then a qualified electrician is a must.
-
Mounting Locations: Plan where components like chargers and batteries will go—under-bonnet, canopy, behind seats or drawers. Ask yourslef, what is going to be easy to access when you are on the road?
-
Correct Cabling: Always use appropriately rated cables and ensure all connections are fused and protected. Undersized wiring can cause real headaches on the road. Do it right, do it once.
-
Ventilation and Heat: Batteries, chargers and inverters should be kept cool and dry for longevity and performance. Inverters will lower their continuous power as the temperature increases.
Keep in mind you are able to install these systems yourself, however 240V hard wired appliances and inverters must be installed by a licensed electrician or electrical contractor. Consult the Australia electrical standards and guidelines to ensure any DC low voltage electrical work performed by an unlicensed individual complies.
Top Brands to Consider
Here are the most trusted brands in the 4WD power system space:
-
Enerdrive – Leading brand for lithium batteries, DC to DC chargers, canopy systems and slimline batteries. In a market first, they have designed five different power systems to run all the electrical equipment in 4WD canopies, from your fridge and lights to a full power station. They all come pre-built in a compact box designed to mount on either the front or rear bulkheads of your 4WD canopy.
-
Renogy - Offers great value for money whilst integrating new technology and state of the art innovations for offgrid 4wd solutions. Renogy is branching out into system design, meaning it has become easier to get powered for less. Designing smaller space saving batteries to large watt solar panels.
-
Invicta – Innovative lithium battery manufacturer, especially known for their under-bonnet hybrid range.
-
BMPRO – Specialises in smart battery management systems and the powerful DC DC ProBoost charger.
-
Projecta - Projecta Power Management Boards are both comprehensive and easy to install, making them perfect for 4WD canopies.
4WD Battery System FAQs
1. What’s the difference between a VSR and a DC to DC charger?
A VSR simply connects batteries based on voltage, while a DC to DC charger actively manages charging profiles and is compatible with lithium batteries and smart alternators.
2. Can I charge my 4WD battery system with solar?
Yes. Many DC to DC chargers have built-in MPPT solar regulators, allowing you to connect solar panels directly.
3. Can lithium batteries be mounted under the bonnet?
Only specific lithium batteries, like Invicta’s Hybrid Lithium range, are rated for under-bonnet use due to high heat and vibration.
4. What size battery do I need for a fridge?
A typical 40–60L fridge will run for a day or more off a 100Ah lithium battery. For longer trips or additional devices, consider 200Ah or more.
5. Are slimline batteries as powerful as regular ones?
Yes. Slimline batteries are designed to offer similar capacity and output while taking up less space. They’re ideal for tight installs.
Whether you're planning short weekend trips or long-haul off-grid adventures, a reliable 4WD power system makes all the difference. From basic VSR kits to advanced lithium canopy setups, there’s a solution to suit every rig and budget. Choosing the right components and installing them properly ensures you’ll have dependable power wherever the road takes you.
Explore our full range of 4WD power systems to find the perfect system for your vehicle today.
-
DISCLAIMER* Please note, this advice is general in nature and we strongly recommend consulting the product manual and where relevant, a professional installer.
