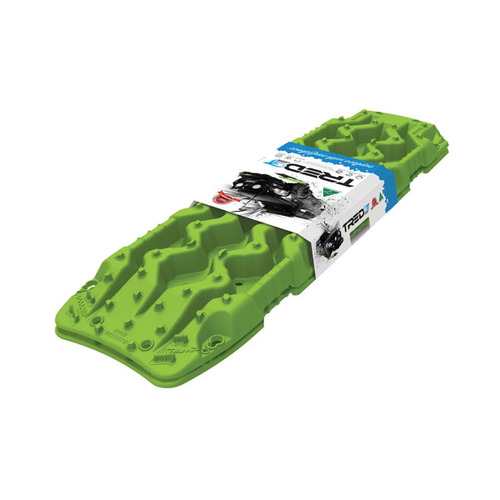

TRED GT Recovery Device, Green

TRED Mount Baseplate Adapter Kit, Flat Mount (KIT 01)

The TRED Mounting Bracket Adapter Kit 01 has been specifically developed to be used in conjunction with the TRED Mounting Baseplate for flat mounting of recovery boards on a roof rack where there is 25mm crossbar support tubes under mesh. If there is no mesh on the roof rack, additional bracing might be required to eliminate twisting and the supplied hardware might need to be shortened for a neater finish.

Kit Contents:

• 1 x TRED U Bracket
• 4 x M5 Stainless Steel Nyloc Nuts
• 4 x M5 x 40mm Stainless Steel Socket Head Bolt
• 4 x M5 Stainless Steel Washers

TRED Mount Baseplate Adapter Kit, Side Mount (KIT 02)

The TRED Mounting Bracket Adapter Kit 02 has been specifically developed to be used in conjunction with the TRED Mounting Baseplate for side mounting of recovery boards on a roof rack where there is 25mm upper tube rail and 35mm bottom base rail tubing. Designed to work with a centre to centre rail measurement of approximately 115mm to 160mm.

Kit Contents:

• 1 x TRED U Bracket
• 1 x TRED Lower Hook Bracket
• 4 x M5 Stainless Steel Nyloc Nuts
• 4 x M5 x 35mm Stainless Steel Socket Head Bolt
• 4 x M5 Stainless Steel Washers
• 1 x M6 Stainless Steel Nyloc Nuts
• 1 x M6 x 16mm Stainless Steel Socket Head Bolt
• 1 x M5 Stainless Steel Washers

TRED 140mm Long Extension Pin 2 Pack

Suitable for mounting 2-4 original model (TRED 800 and 1100) Recovery Boards.

The TRED Threaded Long Extension Pins are designed to easily and securely mount the TRED 800 and 1100 Recovery Boards to your vehicle, trailer or caravan, due to the TRED 800/1100 higher stacking height. This will increase the range to 18-98mm (0.7" - 3.86").

NOTE: This is a threaded pin and therefore not compatible with the TRED GT Quick Release ratchet handle.

Features:

• M6 threaded base design: With the M6 threaded base design, you are able to secure these pins easily onto a variety of surfaces. Depending on your installation, mounting location, and brackets used you may require four Pins for optimum security and stability. For vertical, side, or anything other than flat mounting, we highly recommend using two sets of Mounting Pins.
• Pairs with TRED Mounting Baseplate: When paired with a TRED Mounting Baseplate* (SKU: TMBP01**), the installation is more secure and easier to mount due to the pin location slots, recesses and covers within the Baseplate design. ** Not included, sold separately.
• Work on other branded recovery boards: These pins will also work on other branded recovery boards. To ensure fitment is possible, check the stacking height measurement - The TRED Threaded Long Extension Mounting Pin has a securing height range of 18-98mm (0.7" - 3.86") while maintaining the locking feature.

What's included:

2 x TRED 140mm/5.5" Threaded Mounting Pins

Some channel shapes near the mounting holes in recovery boards will not allow the Securing Nut to completely recess into the channel effecting the height range.

*These pins will not work for a stack of 4 TRED800 models and allow the locking feature to work. when paired with the Securing Nut**.

**Securing Nuts are not included and need to be purchased separately.

TRED 115mm Threaded Mounting Pins 2 Pack

The TRED Threaded Mounting Pins are designed to easily and securely mount your recovery boards to your vehicle, trailer or caravan. The unique design will mount up to four TRED GT, HD or Pro model recovery boards or two of the TRED 800/1100 model recovery boards while allowing the option of a padlock for added security.

Features:

• M6 Threaded base design: With the M6 threaded base design, you’re able to secure these pins easily onto a variety of surfaces. Depending on your installation, mounting location, and brackets used you may require four pins for optimum security and stability. For vertical, side, or anything other than flat mounting, we highly recommend using two sets of Mounting Pins.
• Pairs with TRED Mounting Baseplate: When paired with a TRED Mounting Baseplate* (SKU: TMBP01*), the installation is more secure and easier to mount due to the pin location slots, recesses and covers within the Baseplate design.  *Not included, sold separately.
• Work on other branded recovery boards: These pins will also work on other branded recovery boards. To ensure fitment is possible check the stacking height measurement - The TRED Threaded Mounting Pin has a securing height range of 18-73mm (0.7" - 2.87") while maintaining the locking feature.

TRED Bag for TRED 1100/800/HD/GT

RED carry bags are designed to protect your TRED's and allow ease of storage. The bags feature a large heavy duty velcro closure tab, tough handles, and heavy duty 600 denier waterproof PE material. The double fold velcro tab compliments the waterproof material in protecting your vehicle from mud, sand, and other grime that may be stuck to your TRED's after use.

Available as an optional accessory and sold individually. Recommended for storing the TRED 1100 model to keep your TRED's looking great for years to come.

TRED 1100 Recovery Board Dimensions:

• Length - 1080mm
• Width - 317mm
• Height - 73mm
• Nested/stacked height (one set/pair) - 105mm
• Weight - TRED 1100 (pair) weighs 6.5 kgs

Suitable For:

• TRED 1100
• TRED HD
• TRED GT
• TRED 800

TRED Mounting Baseplate

The TRED Mounting Baseplate makes the installation of recovery boards easier, and more secure due to the pin location slots, recesses and covers within the Baseplate design.

The recessed slots on the front face of the baseplate have been set for correct alignment of the TRED Mounting Pins (sold separately) to align with the recovery boards mounting pattern perfectly.

The Baseplate includes multiple design allowances for permanently mounting the Baseplate with things like self-tapping screws, bolts, straps or even a less permanent situation like using heavy-duty cable ties.

Using a more secure system like bolts to fix the plate down onto the surface, then covering the hardware with the supplied Baseplate covers, completes the install. It also adds a tamper-proof system, making it harder to remove the pins from the Baseplate and the whole Baseplate off the vehicle when the boards are mounted.

Couple this with the locking features within the pin design, you have a secure method of mounting our investment to your vehicle.

Features:

• Suits both Threaded & Quick Release Pins (Pins and Adapters sold separately)
• Designed for various fixing options
• Suits TRED Mount Baseplate Adapter Kits (Pins and Adapters are sold separately)
• Flush Slot Covers included
• Recessed Plate Mount Securing Holes
• 12-Month Warranty (With great quality, comes great confidence)
• Australian Made (Proudly Australian made, owned and operated by 4x4 enthusiasts)

TRED GT Medium Storage Bag

TRED GT Storage Bags have been carefully designed for strength, durability, and ease of use.

Made with PVC outer lining and Cordura®️ inner lining, weather-resistant zipper, rubber mesh panel on the back, and a comfortable rubber handle.

Perfectly fits TRED GT Levelling Ramp Pack*

*Levelling Ramp Pack not included

Features:

• Light internal padding throughout
• Twin Zipper
• Great for storing many different items
• Rubber feet pads on bag underside
• Convenient internal divider
• Top Access
• Comfortable rubber grip handle
• Perfectly fits TRED GT Levelling Ramp Rack
• The Rubber Mesh Panel at the back allows moisture to escape
• Condura Lining
