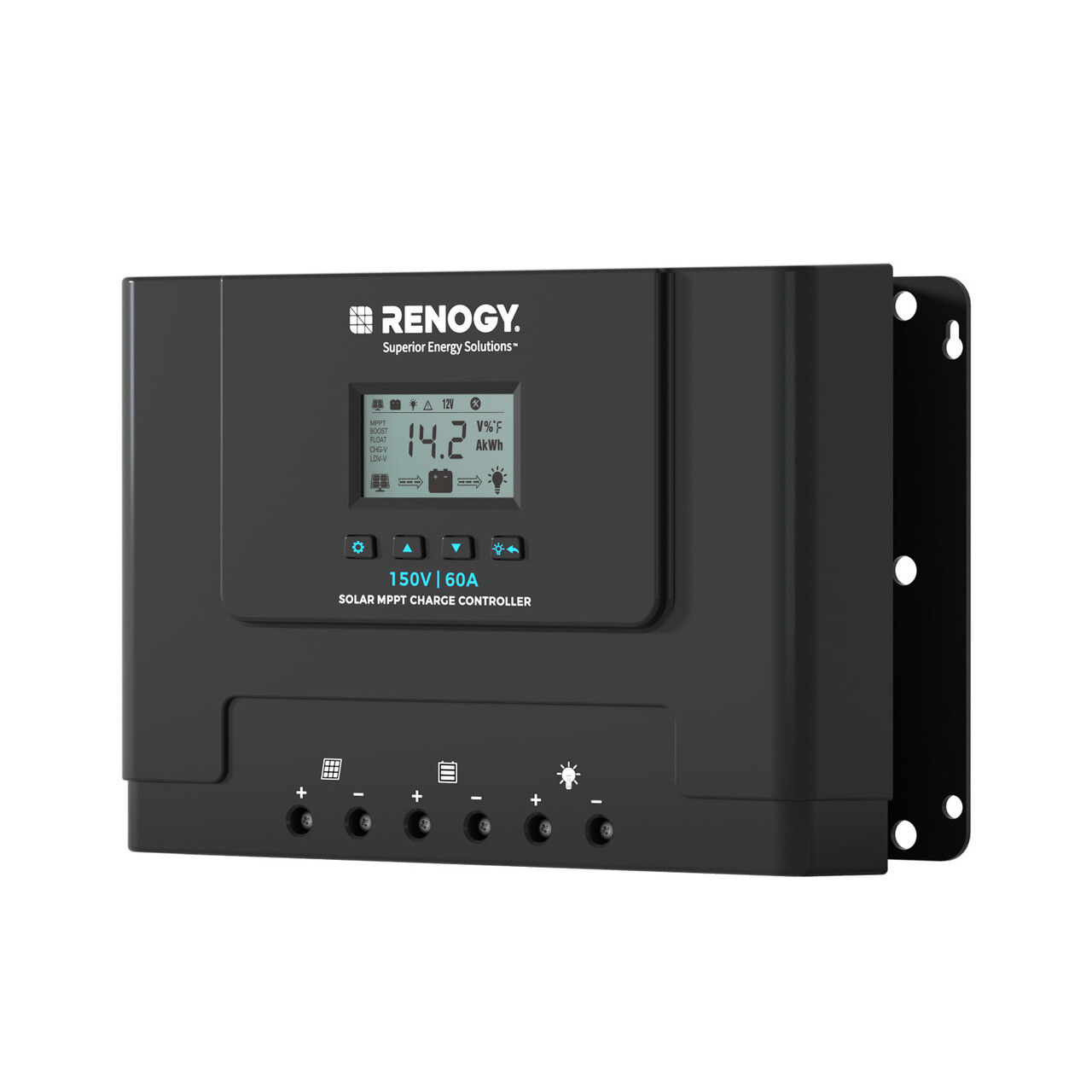

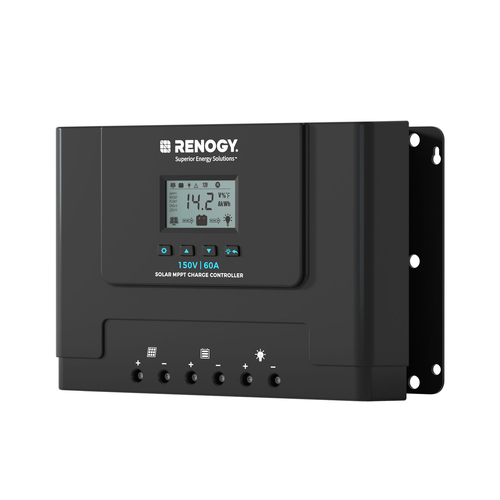

Renogy Rover Lite 60A MPPT Solar Charge Controller

Description

Renogy Rover Lite 60A MPPT Solar Charge Controller

Robust 150V solar input guarded by low-temp protection.

• 150V max solar input for greater DIY project flexibility.
• Reliable performance from -31℉ to 113℉.
• Versatile compatibility with 12V to 48V systems.
• User-friendly design

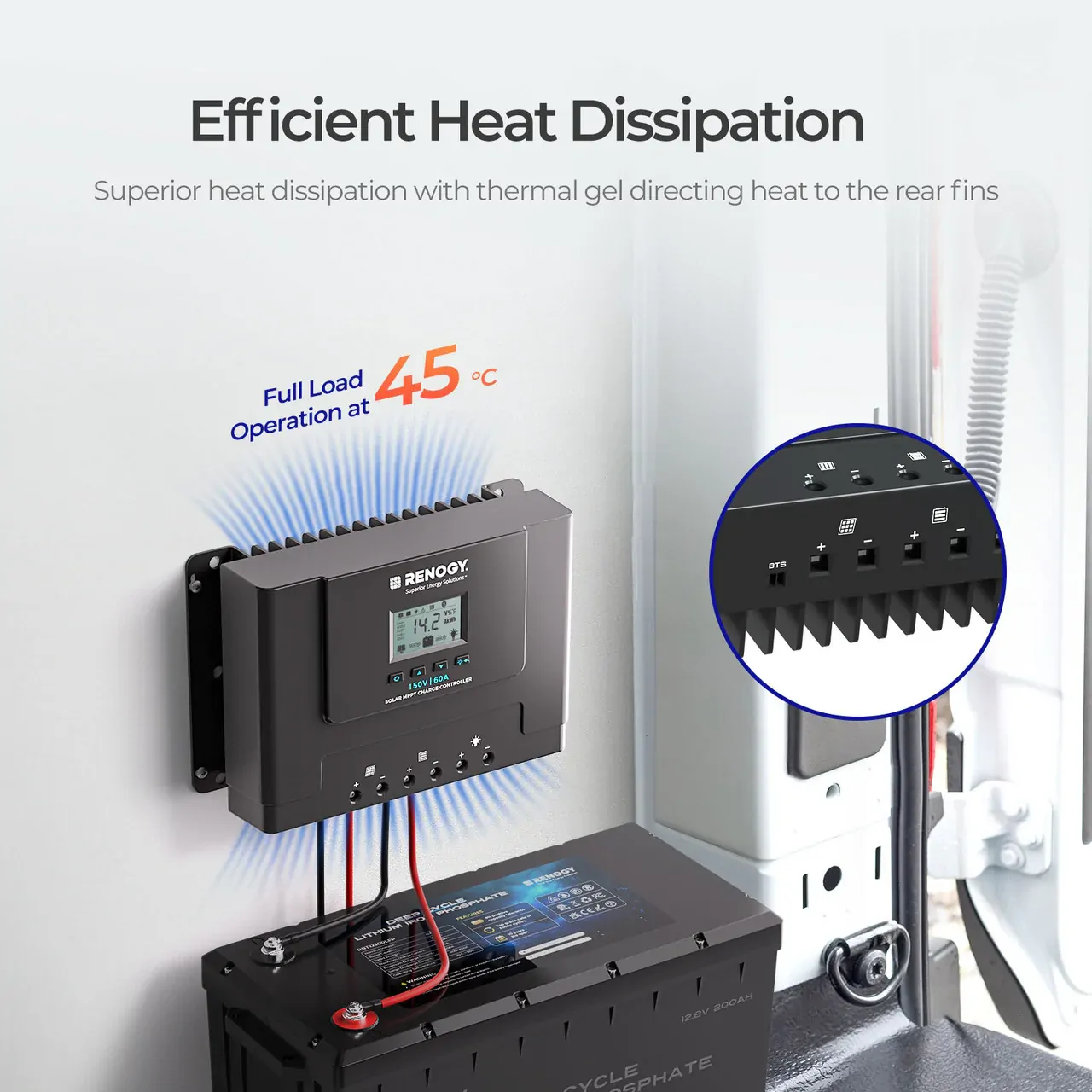

Superior Heat Dissipation
The internal potting of our MPPT solar charge controller improves heat transfer to the external metal heat sinks, preventing overheating and ensuring efficient charging. This advanced design guarantees reliable performance, making it the perfect choice for optimal energy management.

Maximize Efficiency with Exceptional Value
This 60A charge controller delivers 99% MPPT tracking efficiency and 97% conversion efficiency, maximizing your solar power output. With high-performance features at an affordable price, it offers exceptional value for budget-conscious users.

85% Lower Self-Consumption
With an ultra-low self-consumption of only 0.18W in 12V systems—far less than the 0.7W of other charge controllers—this MPPT solar charge controller directs more solar power to charge your batteries, optimizing energy use.

Store Up to 2 Years of Data
Connect the Rover Lite 60A MPPT charge controller to the BT-2 Bluetooth module to monitor and store up to two years of data, providing easy access to historical records and system adjustments!

85% Lower Self-Consumption
With intuitive built-in buttons and a clear LCD screen, this solar controller allows you to easily access and monitor real-time charging data with just a glance.

Stable Performance in Changing Temperatures
This MPPT solar charge controller operates at full load up to 113℉ and includes low-temperature protection below 32℉, safeguarding your lithium battery during cold-weather charging. As a reliable companion on any journey, it ensures optimal performance, even with temperature fluctuations.

Note: Before installing your MPPT solar charge controller, please find a cool, dry, and weather-safe location. Ensure there is enough ventilation space for proper heat dissipation to maintain the efficiency of your charge controller.

Package Includes:

• 1 x Renogy Rover Lite MPPT solar charge controller
• 1 x Remote Temperature Sensor
• 4 x Mounting Brackets
• 1 User Manual

Features:

• Grounding: Common Negative
• Communication: RS485
• Cooling: Heat Sink
• Enclosure Rating: IP32
• Regulatory and Safety Specifications: FCC Path 15, Class B,CE,RoHS
• Rated Battery Input Voltage: Non-Lithium: 12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition)
• Battery Input Voltage Range: 9VDC~64VDC
• Rated Charge Current: 60A
• Maximum Solar Input Power: 900 W (12V Battery);1800W (24V Battery);2000 W (36V Battery);3200W (48V Battery)
• Maximum Solar Input Voltage (Voc): 150VDC
• Power Consumption:
  • ＜15 ma (12V Battery)
  • ＜11 ma（24V Battery）
  • ＜8 ma （36V Battery）
  • ＜7 ma（48V Battery）
• MPPT Tracking Efficiency: >99%
• Conversion Efficiency: ＞97%
• Temperature Compensation: -3mV / °C/ 2V (Non-Lithium) 0mV/ °C / 2V; no compensation (Lithium)
• Charger Algorithm: 3-stage Lead Acid, Bulk, Boost, Float, Equalize*, 2-Stage Lithium, Bulk, Boost
• Charger Preset: AGM, Gel, Flooded, Lithium-iron Phosphate, User Custom

MPPT Solar Charge Controller Informtion:
