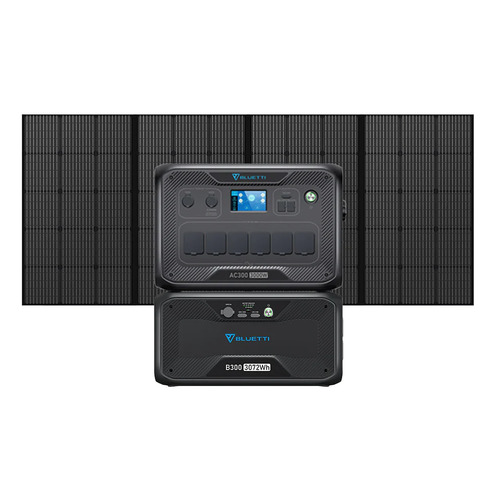

Bluetti AC300 3000W Inverter Module Generator with B300 Expansion Battery 3072Wh & PV350 350W Portable Solar Panel

Description

Bluetti AC300 3000W Inverter Module Generator with B300 Expansion Battery 3072Wh & PV350 350W Portable Solar Panel



Includes:

• Bluetti AC300 3000W Inverter Module Generator, AC300-AU-BK-BL-00
• Bluetti B300 Expansion Battery 3072Wh  B300-UN-GY-BL-00
• Bluetti PV350 350W Portable Solar Panel, PV350-US-BK-BL-01



Bluetti AC300 3000W Inverter Module Generator

• 3000W Pure Sine Wave Inverter. With a quality AC inverter, the AC300 is capable and safe enough to take care of your high-power devices like air conditioners, fridges, mowers and laser cutting machines.

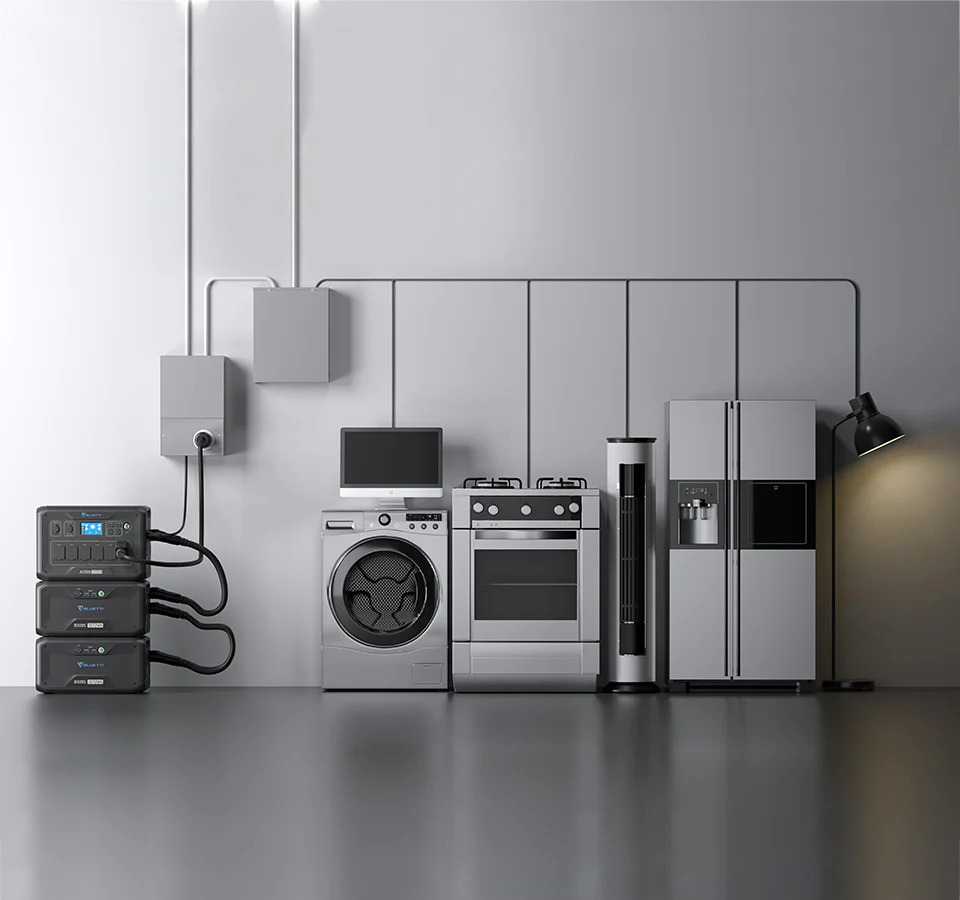

• Expandable Power Supply. As BLUETTI's first 100% modular station, the AC300 can accept external battery packs and boost its capacity to a Max. 12,288Wh. From emergency backup to off-grid power source, this generator for home backup is sure to handle all your electricity needs.

• 5400W Fast Charging. Plug in the adapter and solar panels, then you can top up BLUETTI AC300 with astonishing 5400W input rate. Charge this powerhouse before an impromptu trip, and you're good to go. 5400W = 3000W AC + 2400W Solar( At least 2×B300 are REQUIRED)

• 5 Ways to Charge.  Flexible to charge your AC300 via wall outlet, solar panels, car, generator and lead-acid battery, etc. Stay connected anytime, anywhere.

• Multiple Outlets for Every Need. The 12V/30A DC port are perfect for RVers. Meanwhile, the wireless chargers enable you to charge compatible smart phones, earphones and so on.



Specifications

OUTPUT

• AC Outlets: 6x 220V-240V, 3,000W In Total
• Inverter Type: Pure Sine Wave
• Surge Power: 6000W
• USB-C Port: 1 x 100W Max.
• USB-A Port: 2 x 5V/3A USB-A | 2 x 18W USB-A
• 12V* DC Outlets: 1 x 12V/30A (RV Outlet) | 1 x 24V/10A (Car Outlet)  *All Regulated.
• Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

• AC Charging Cable Input: 3,000W Max.
• Solar Input: 2,400W Max., VOC 12-150VDC, 12A
• Car Input: 12/24V from Cigarette Lighter Port
• Max Input: 5,400W, with AC and Solar Input Simultaneously

GENERAL

• App Control: Yes, Wifi&Bluetooth
• Scalability: Expandable W/Up to 4 x B300
• Simultaneous Recharge & Discharge: Yes
• Weight: 21.6kg
• Dimensions (LxWxD): 52 x 32 x 35.80cm
• Operating Usage Temperature: -20-40℃
• Storage Temperature: -20-40℃
• Certification: UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS

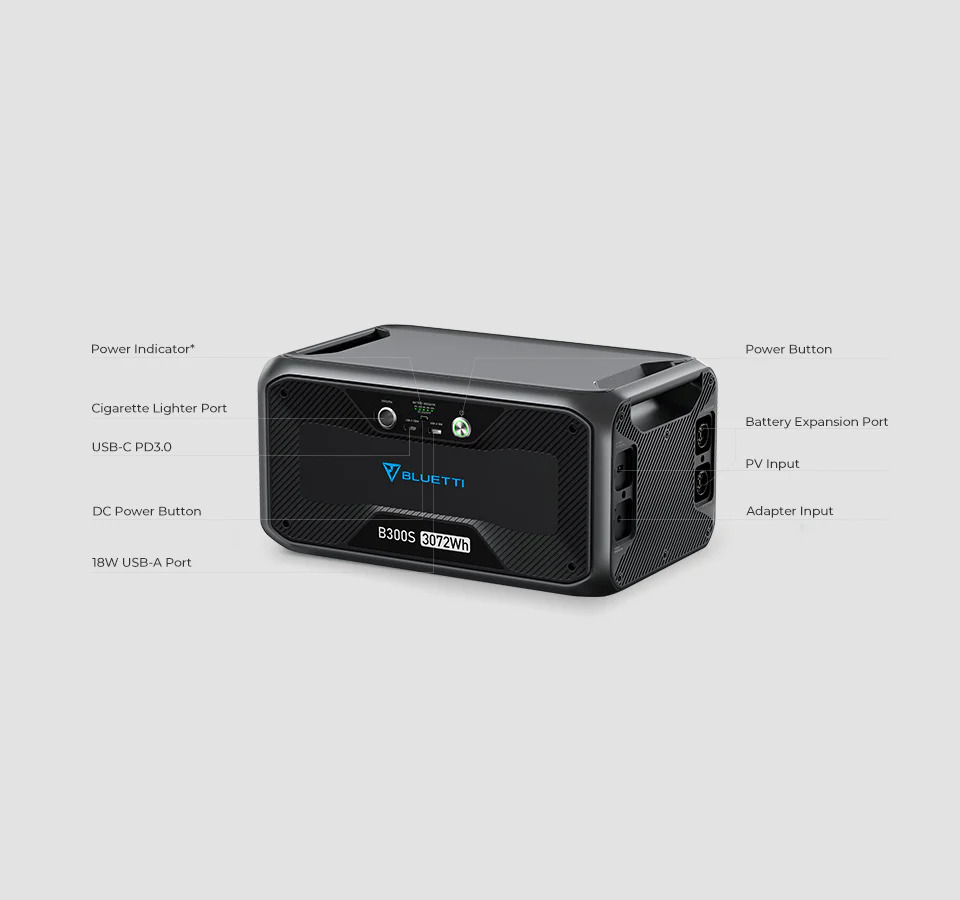

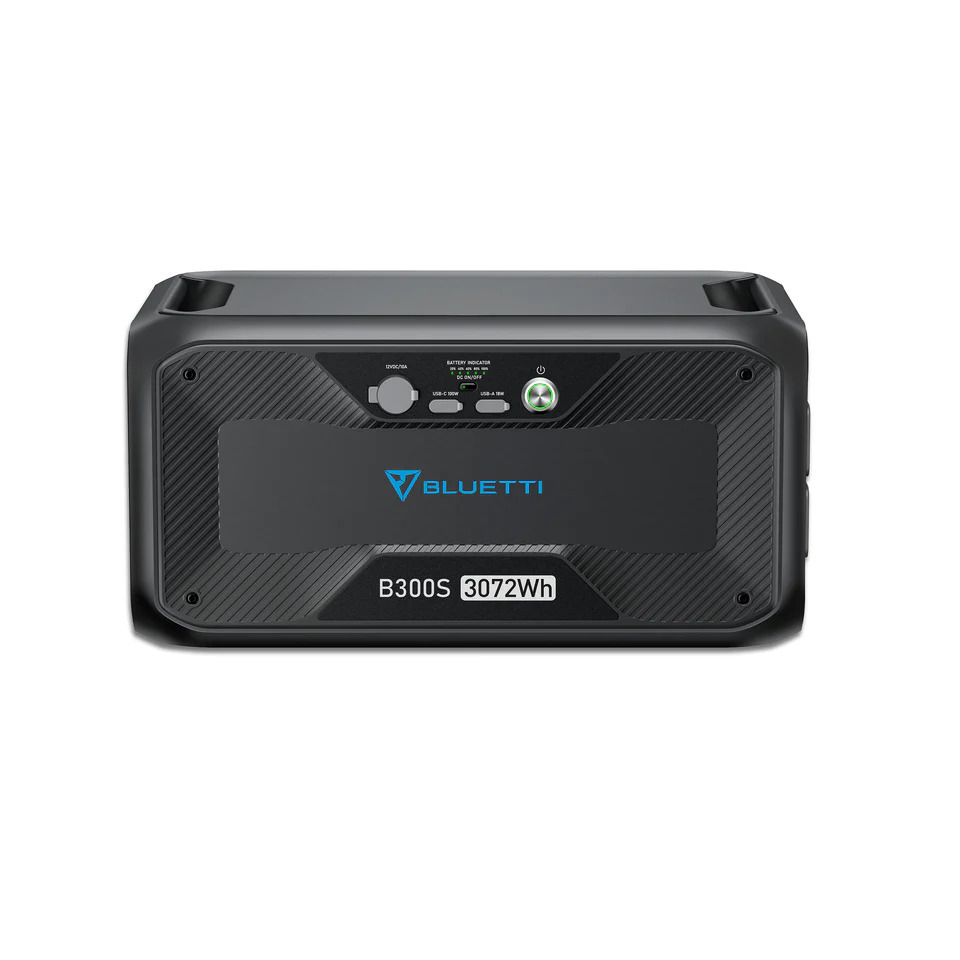

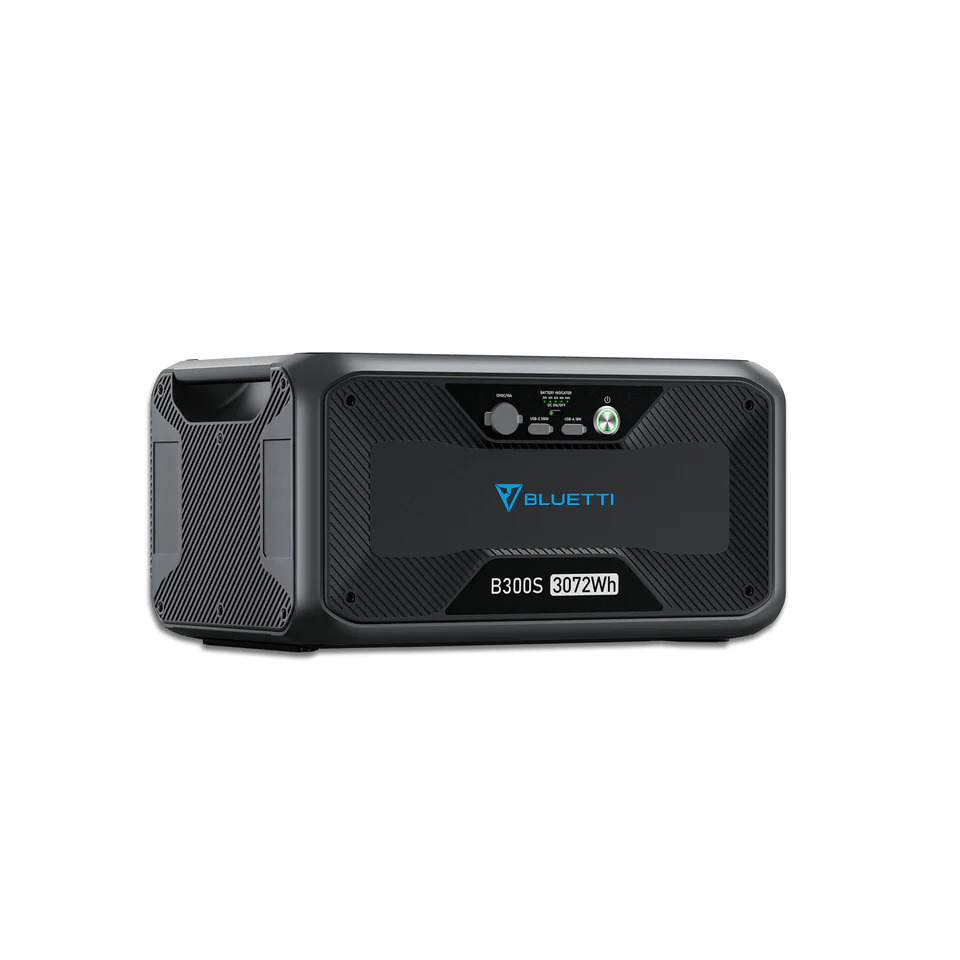

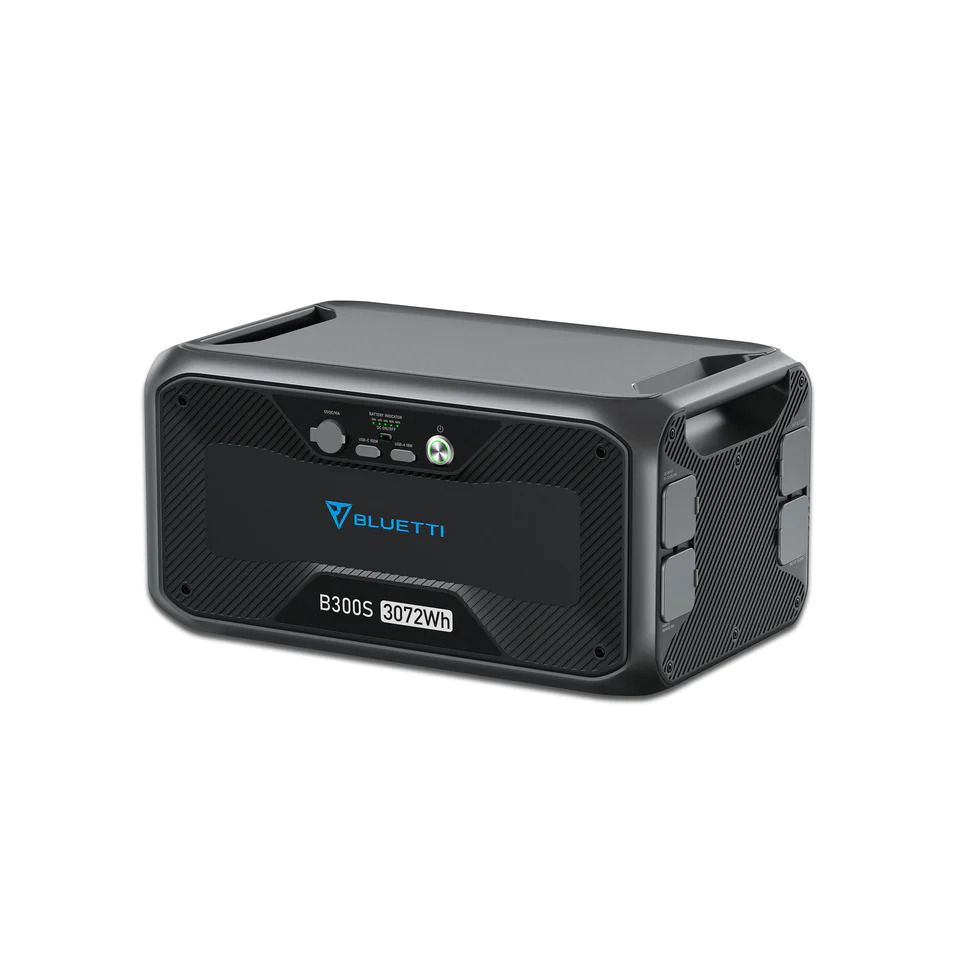

Bluetti B300 Expansion Battery 3072Wh

Features:

• Features with a 100W USB-C, a 12V/10A car output and a USB-A ports, you can use the B300 as a portable power station.
• The smart MPPT inside of the B300 enables it to recharge quickly through solar power at a 200W maximum loading scale.
• You can also recharge it by wall socket, car charging or lead-acid battery.
• Car charging and lead-acid battery charging need to be realized through D050S



Specifications:

BATTERY INFO:

• Capacity: 3072Wh(51.2V, 60Ah)
• Type: LiFePO4(Lithium Iron Phosphate)
• Life Cycle: 3500+ Cycles to 80% Original Capacity
• Shelf-Life: Recharge to 80% Every 3-6 Months
• Management System: MPPT Controller, BMS, etc.

OUTPUT:

• USB-C Port: 1 x 100W Max.
• USB-A Port: 1 x 18W USB-A
• 12V DC Outlet*:1 x 12V/10A (Car Outlet) *All Regulated.

INPUT:

• AC Input: 500W Max
• Solar Input: 200W Max., VOC 12-60VDC, 10A
• Car Input: 12/24V from Cigarette Lighter Port
• Max Input: 700W, With AC Adatper + Solar Input Simultaneously

RECHARGE TIME:

• AC:≈ 6.5~7 Hours at 500W
• Solar: ≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature)
• 12V/24V Car Outlet (100W/200W): ≈ 30 or 15 Hours
• AC + Solar: ≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature)
• Solar + Solar: ≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)
• Dual AC:≈ 5 Hours at 700W (Extra adapter REQUIRED)

GENERAL:

• Pass-through Charge: Yes
• Weight: 79.6lbs(36.1Kg)
• Dimensions (LxWxD): 20.5*12.5*10.5 inch ( 52 x 32 x 26.6cm)
• Operating Usage Temperature: -4-104℉ (-20-40℃)
• Storage Temperature: -4-104℉ (-20-40℃)
• Certification: UL Standard, CEC, DOE, FCC, CA Prop 65
• Warranty: 2 Years

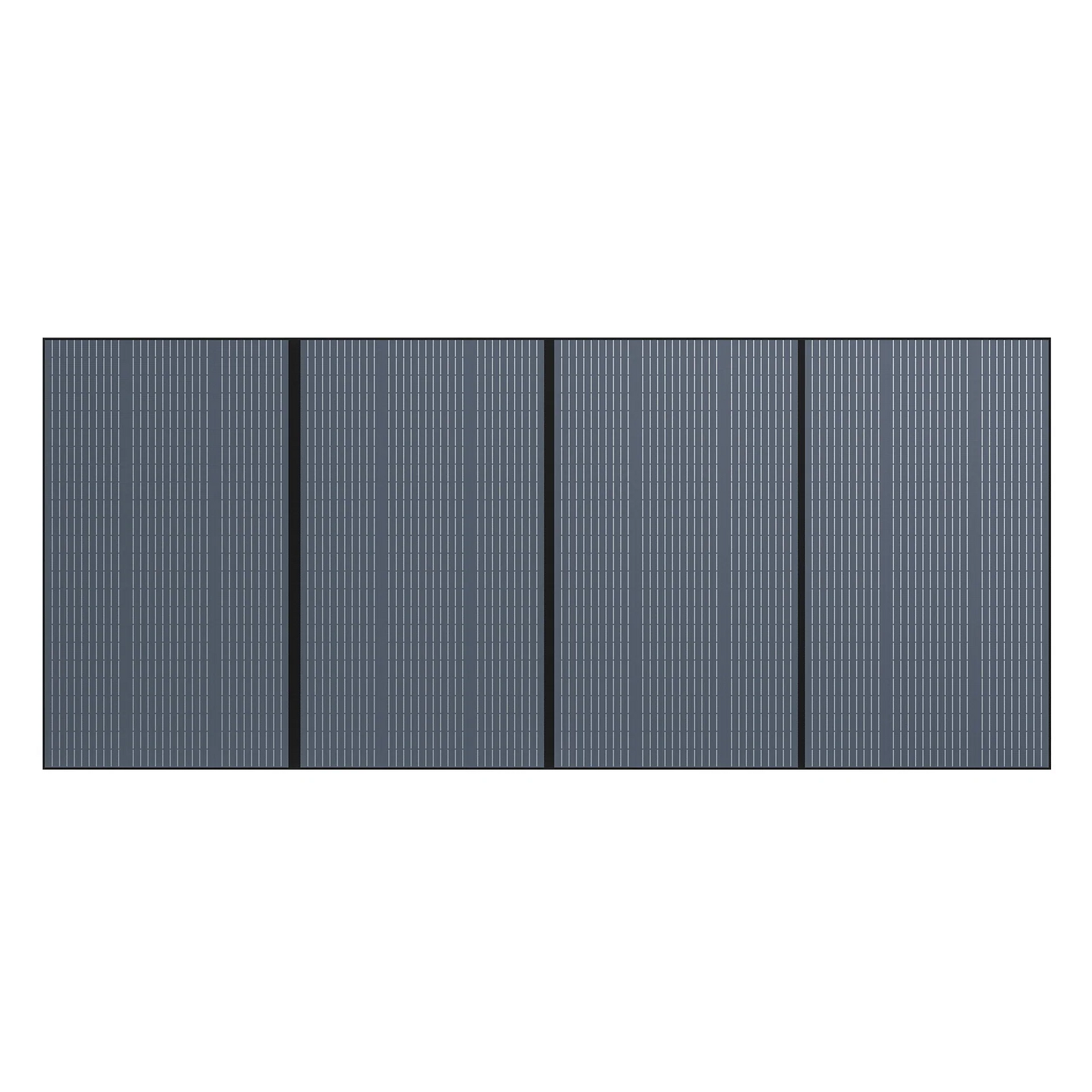

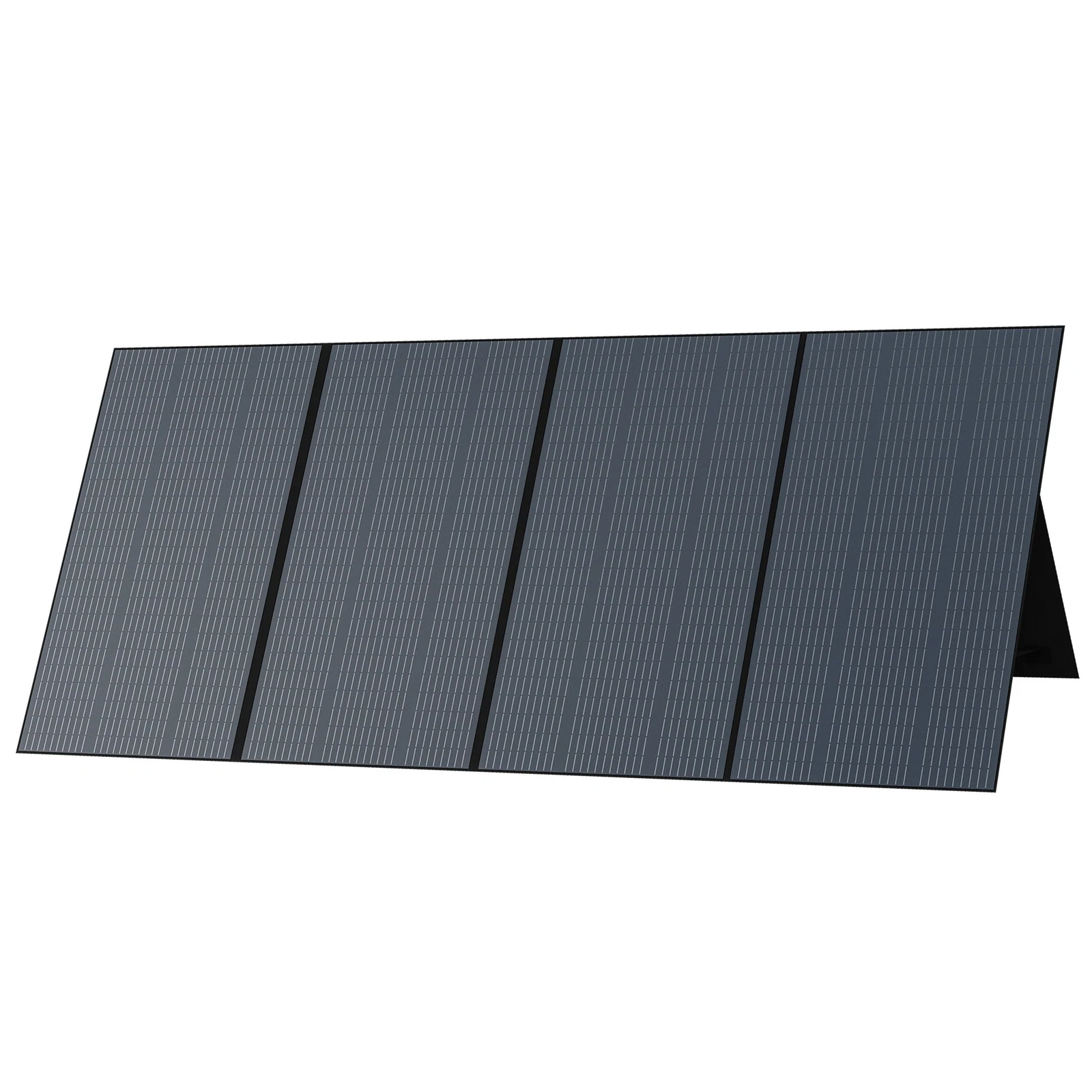

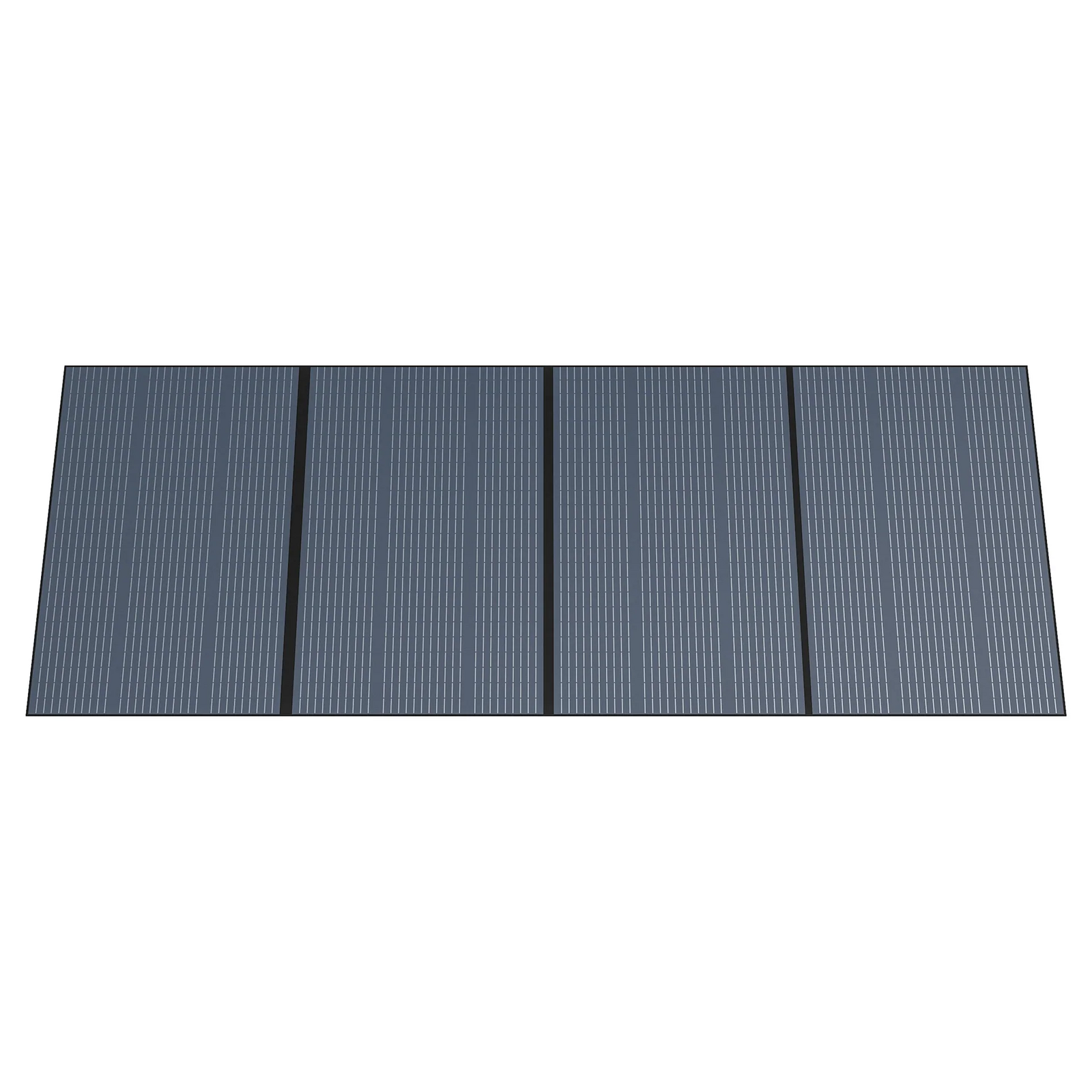

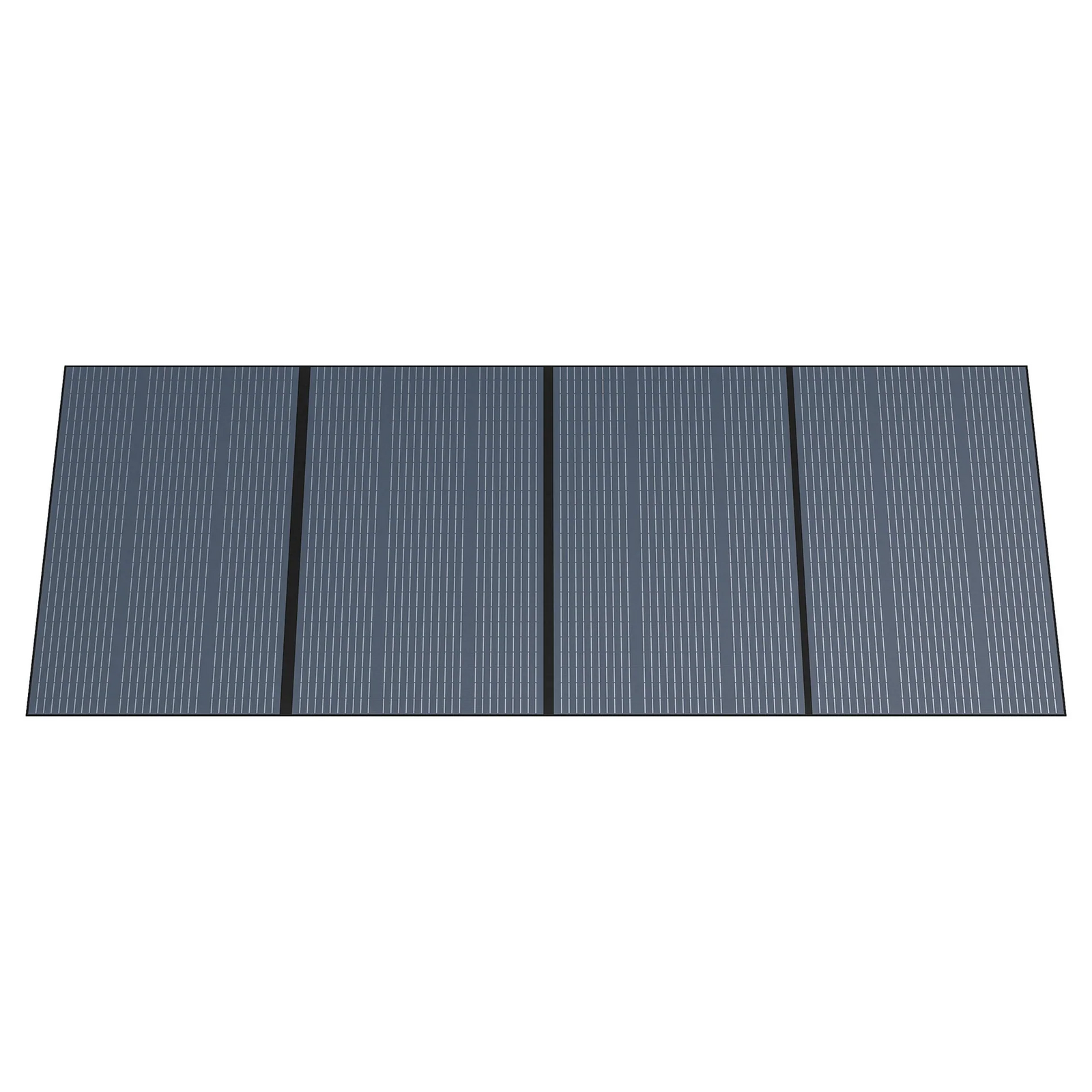

Bluetti PV350 350W Portable Solar Panel

Features:

• Higher Conversion Rate
• Easy Setup & kickstand Included
• Durable & Splash-Proof
• Compatible With BLUETTI AC200P/AC200MAX/AC300/EB150/EP500Pro/EP500
• Foldable & Portabl

Off-Grid Power Supply
     By generating renewable electricity from the sun's energy, BLUETTI PV350 solar panel is a reliable and budget-friendly power supplier to juice up your laptop, drone, fridge, electric drill, and other devices whether your're at home or on the go.

Foldable & Portable
     How big is BLUETTI PV350 350w solar panel? With a folded size of 35.6*24.1*2.5（folded) inches and 30.61lbs of weight, the BLUETTI PV350 is convenient to carry around and easy to be set up for anyone anywhere.

Durable & Splash-Proof
     It's made of advanced laminated technology and long-lasting ETFE material on the surface, making this 350w solar panel more durable, better light transmittance,cratch-resistant and easy to clean by wet cloth. It is IP65 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water).

23.4% Conversion Rate

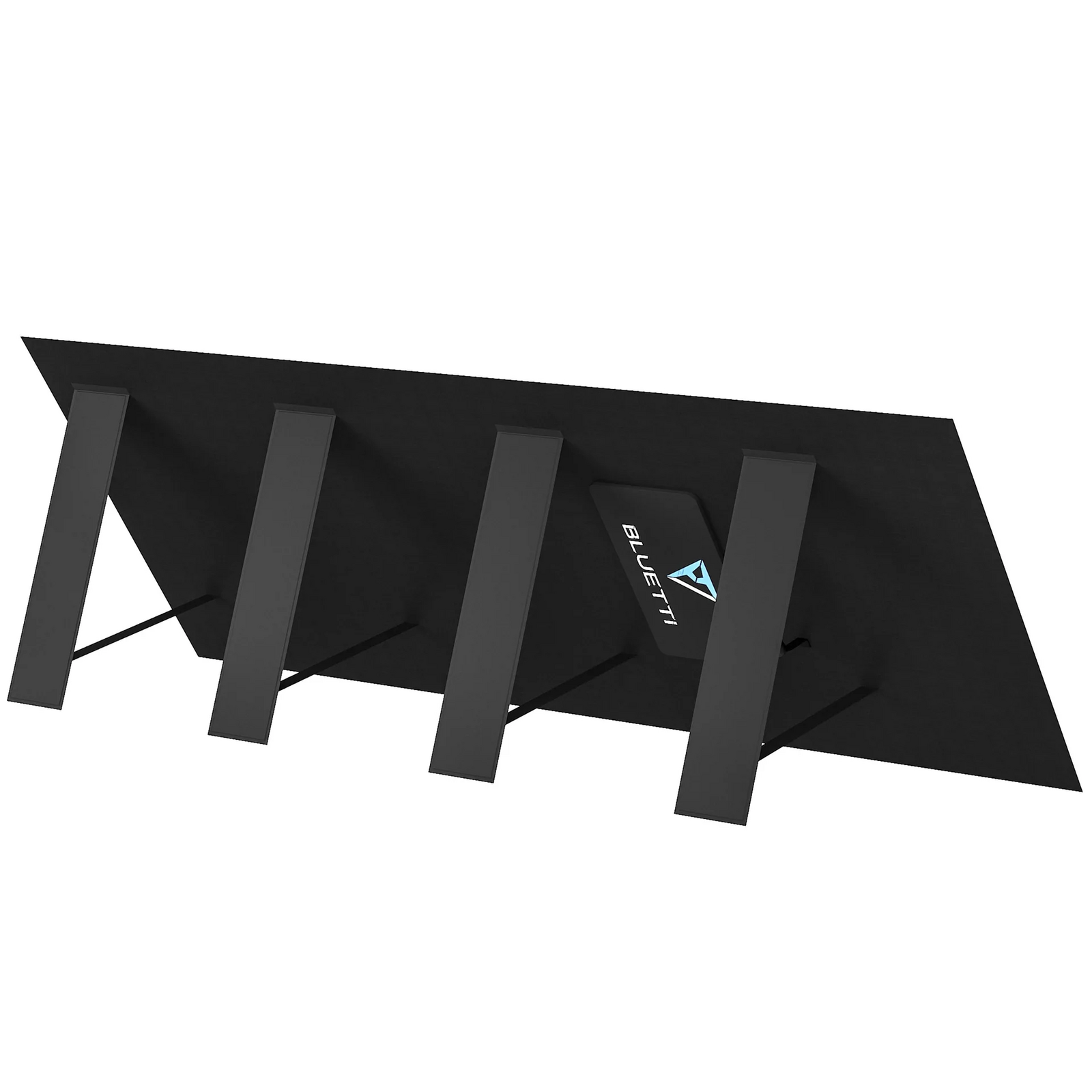

     BLUETTI PV350 is built with a 350-Watt monocrystalline solar panel to guarantee a high conversion efficiency up to 23.4%. With excellent 95% transparency, this bluetti 350 watt solar panel performs better than the polycrystalline solar panels in low-light conditions. It comes with 4 fixed stands that ensure direct sunlight onto the panel to maximize panel utilization.

Wide Compatibility
     Equipped with the MC4 connector, BLUETTI PV350 solar panel is highly compatible with most solar generators on the market, especially works well with BLUETTI AC200P/AC200MAX/AC300/EP500/EP500PRO/EB150 power station.



Power Specifications:

• Power: 350W
• Lamination: ETFE (Ethylene tetrafluoroethylene)
• Cell Type: Monocrystalline Silicon
• Cell Efficiency: Up to 23.4%
• Voltage at Max Power(Vmp): 37.5V
• Current at Max Power(Imp): 9.2A
• Open Circuit Voltage(OCV): 46.5V
• Short Circuit Current(Isc): 10.8A

General Specifications:

• Connector: Standard MC4 Connector
• Weight: 30.6lbs (13.9kg)
• Dimension (Unfolded): 35.6 × 94.4inch (90.5*240cm)
• Dimension (folded): 35.6 × 24.1 ×2.5in (90.5*61.3*6.5cm)
• Operating Temperature: 14-149℉ (-10-65℃)
• Best Working Temperature: 77℉ (25℃)
• Cable Length: 118in/ (3m)
• Certifications: FCC, CE, ROHS
• Warranty: 24 Months
