Victron Skylla-TG 24/30 GMDSS 120-240V excl. Panel
SKU: SDTG2400302 Learn More»
Description

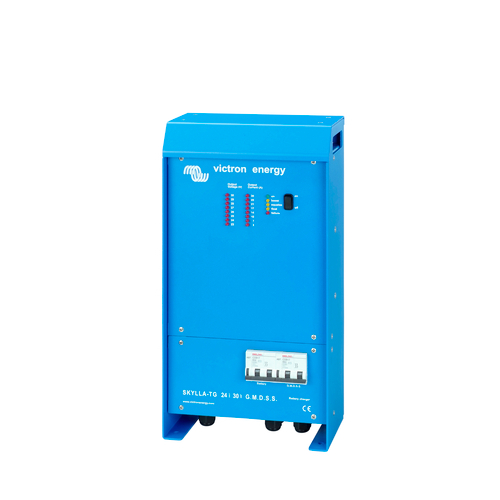

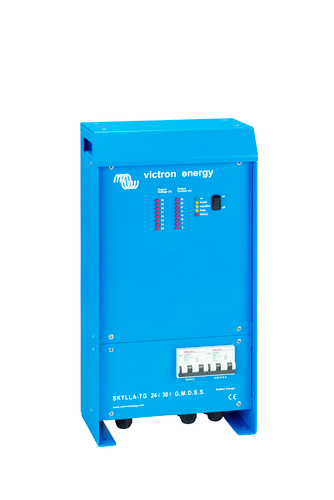

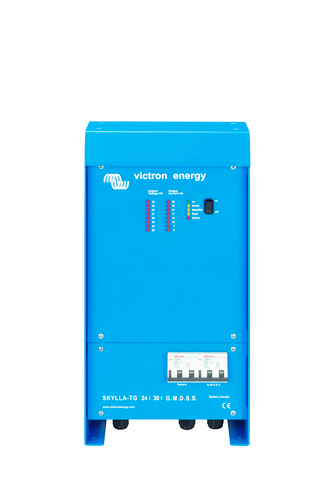

Victron Skylla-TG 24/30 GMDSS 120-240V excl. Panel
The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.
GMDSS
The Global Maritime Distress & Safety System (GMDSS) was developed by the International Maritime Organisation (IMO) to improve maritime distress and safety communications.
Power supply
The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla Charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.
Installation made easy: the Skylla GMDSS
The Victron Skylla GMDSS Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP-cable connects the charger to the panel.
No adjustments needed
The whole system is ‘click and go’: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required.
Battery time to go
The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored so the panel can even indicate the ’time to go’ in case of a power supply black out.
Perfect charger for any type of battery
Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.
Specifications:
- Input Voltage (V AC) 230
- Input Voltage Range (V AC) 90-265
- Frequency (Hz) 45-65
- Power Factor 1
- Charge Voltage 'Absorption' (V DC) 28.5
- Charge Voltage 26.5
- Charge Current 30 (limited to 22 A at 110 V AC)
- Charge Characteristics IUoUo (three step)
- Temperature Sensor Yes
- Can be used as a power supply Yes
- Forced Cooling Yes
- Protection a, b, c, d
- Operating Temperature Range -40 to +50°C (-40 - 122°F)
- Humidity (Non-condensing) max 95%
- Material & Colour aluminium (blue RAL 5012)
- Battery-Connection Two 1,5 m cables
- Protecttion Category IP 21
- Weight kg 6
- Dimensions 3485x250x147
- Safety EN 60335-1, EN 60335-2-29
- Emission EN 55014-1, EN 61000-3-2
- Immunity EN 55014-2, EN 61000-3-3
Specifications
SKU SDTG2400302
Brand Victron
GTIN 8719076025726
Product Category Battery Chargers
Voltage 24V
Output Current Rating (Amps) 30
Dimensions 485 x 250 x 147 (LxWxH) mm
Weight (kg) 6
Charger Voltage 24V
