Toyota Land Cruiser 76 Drawer Kit - by Front Runner

Description

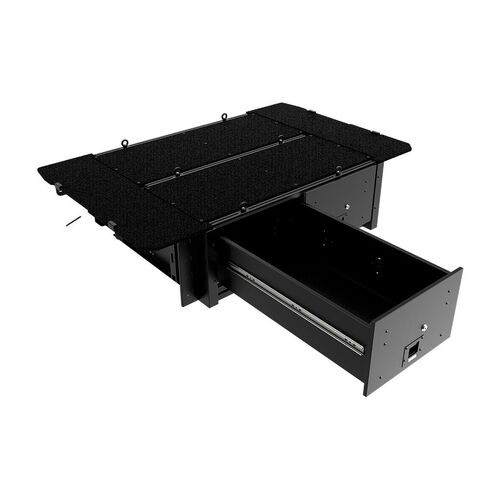

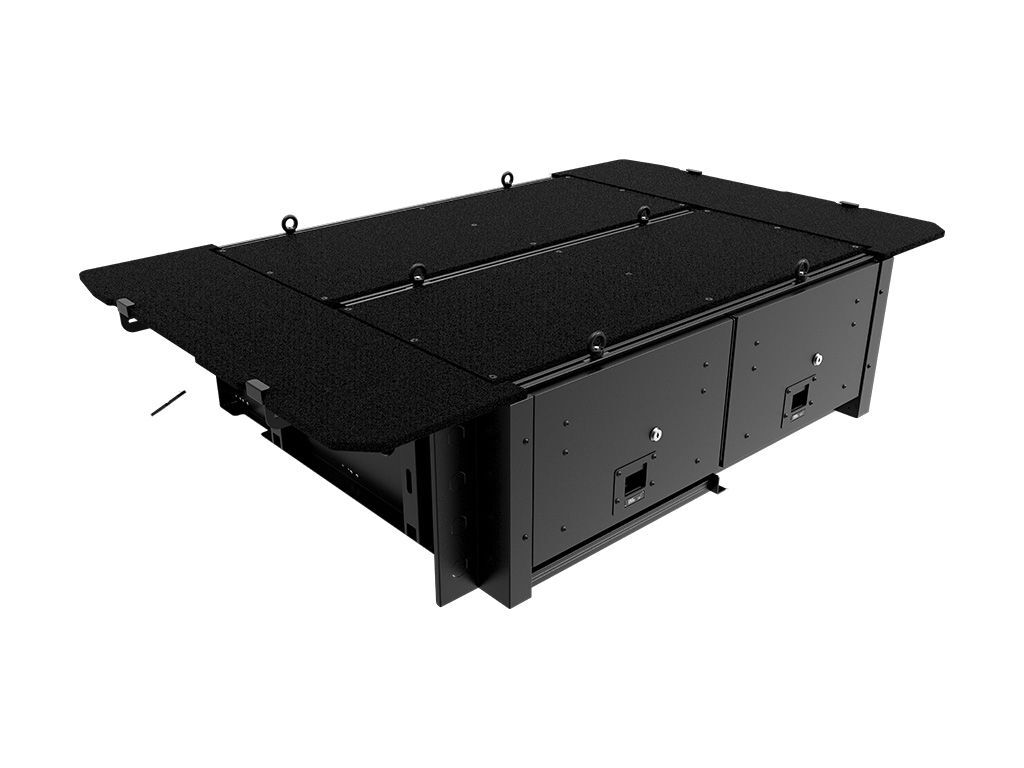

Toyota Land Cruiser 76 Drawer Kit - by Front Runner

This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

• 113kg / 250 lb per drawer load carrying capacity.
• High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
• Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
• The flat deck incorporates three cargo attachment channels and 6 Tie Down Rings / Eye Nuts For Drawer System.
• Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
• The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.
• The left and right-side Faceplates have 4, pre-cut, knock-outs each for adding electrical panel socket inserts (sold separately).
• The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
• To create compartments within the drawers, add the optional steel Drawer Dividers. Helps organize and stop excessive movement of gear and supplies. Sold in pairs, these drawers can accommodate up to 4 dividers per drawer.
• The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicle’s interior contours.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• Finished with the same durable black powder coating as the Front Runner Roof Rack and other Front Runner products.
• This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets. Removing the drawers is just as easy.

All Front Runner Storage Systems are backed by a 2 year warranty.

*Please Note: Drawer Dividers are not included when purchasing this Drawer System and are sold separately.

Consists of:

• 1 x Drawer base unit (SSDR005)
• 1 x Toyota Land Cruiser 76 Deck Completion set
• 2 x Front Covers
• 2 x Push to Close Latch with 2 keys per lock
• 3 X Accessory channels
• 6 x Eye Nuts for accessory channels
• Installation Hardware includes 4 turnbuckles to secure unit to vehicle
• Fitting instructions

Materials used:

• Aluminum - Accessory Channels & Sub Frame
• Black powder coated steel - Drawer Bins, Frame & Front Covers
• Carpet & Laminated plywood - Top Deck & Deck Set

Product Dimensions: Overall Dimensions: 882mm (L) x 1426mm (W) x 334mm (H)

Internal Drawer Dimensions:

• Left Hand Side: 817mm (L) x 386mm (W) x 213mm (H)
• Right Hand Side: 817mm (L) x 386mm (W) x 213mm (H)

Weight: 66.13kg

Load Rating:

• 113Kg per Drawer
• 250Kg Distributed across the Drawer Top Deck
